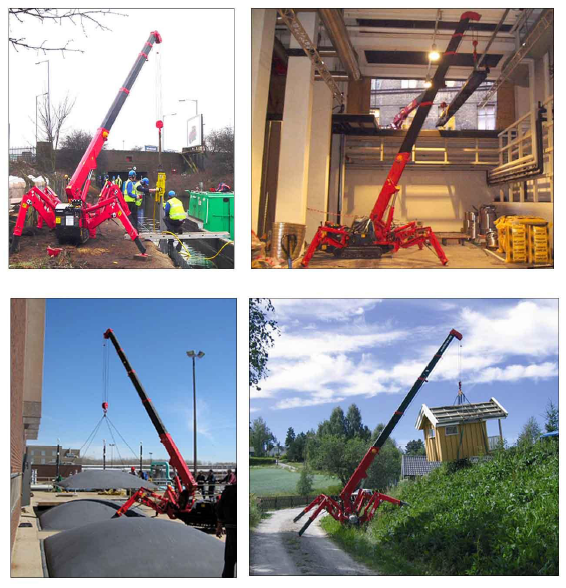

Spider crane for lifting operations in narrow spaces,such as disaster relief,building interior,roof,floating boat,street alley,etc.

The fuselage is compact (4.6mx1.4mx2.1m).

With high self-provided power and hydraulic walking,it can adapt to the rugged outdoor field.

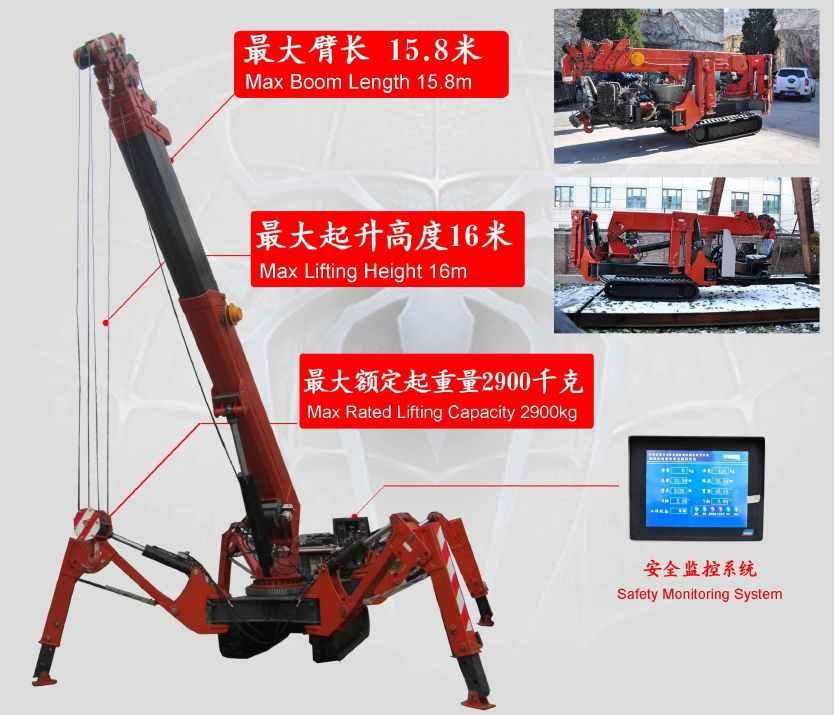

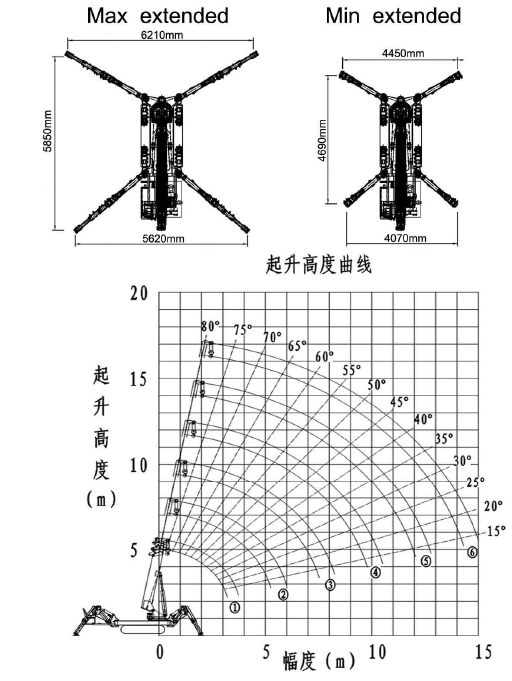

The maximum boom length is 15.8 meters, the maximum lifting height is 16 meters,and the maximum rated lifting weight is 2900 kg.
