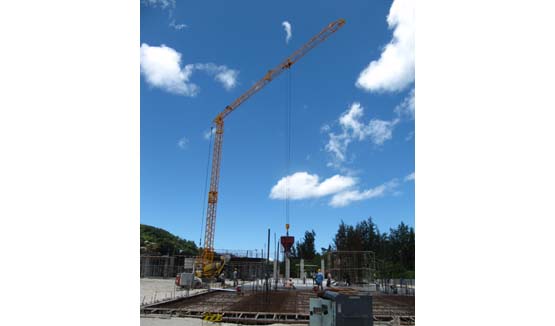

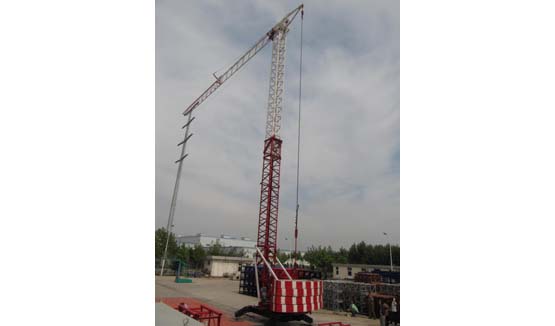

Self Erected Tower Crane

Product Features

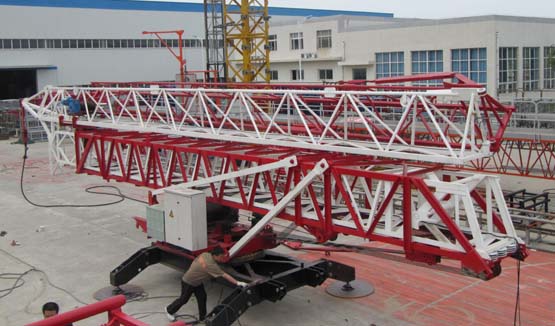

Being rapidly assembled and ready for use within one hour;

It can be entirely towed through all standard bridge because of compact structure;

Tower body self-locked, jib self-connected and pulley self-positioned on jib end, making no aloft working during the whole processes of erection and dismantling;

Load moment limiter and load lifting limiter with high accuracy and reliability;

Both fixed supports and rail tracks are optional;

Technical Data

Items

Unit

Parameters





QTK25

QTK40

Lifting moment

kN·m

250

400

Rated lifting capacity

t

1-3

1.1-4

Working radius

m

3~25

3.5~34.5

Hoisting height

m

23

23

Dead Weight

t

10.5

14.63

Counter weight

t

14.4

25.74

application example

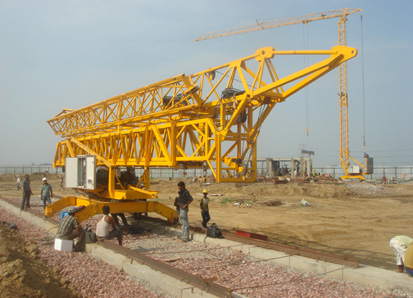

  • india (2)

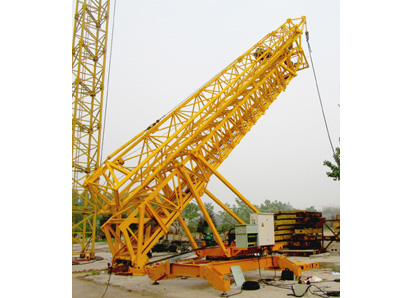

  • application (4)

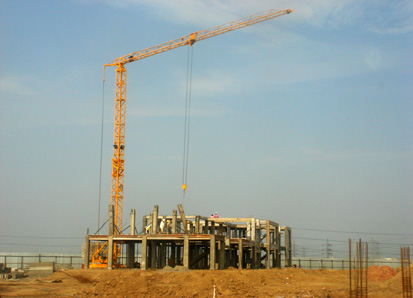

  • india (1)

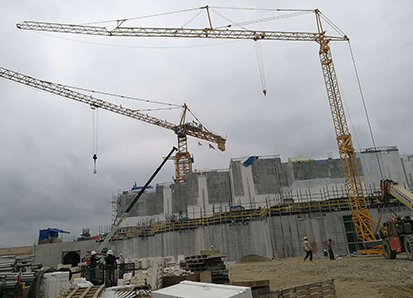

  • application 5

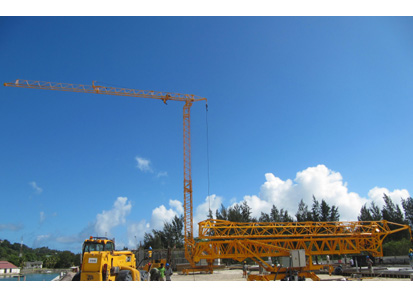

  • America

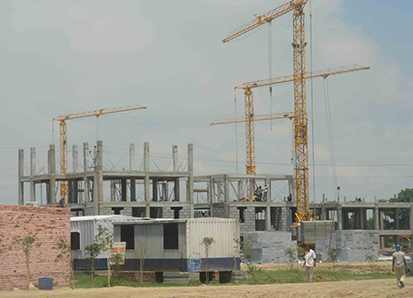

  • application 6
