Form-Frame placing boom

Product Description

Max. horizontal reach 15 / 17 / 21 / 24 / 28 / 32 / 33 m

Product Description

FORM-FRAME PLACING BOOM: Specialized in high-rise buildings

(patent number :ZL201420292013.6)

The mobile form-frame placing boom with base frame, it connected with slip form to do climbing. No need other power system. When slip form climbs, the Concrete placing boom will climb simultaneously.
Compared with common self climbing concrete placing boom, slip form type has advantage as below:
1. No need to design climbing system, can adjust it based on work jobsite.
2. Climbing with slip form, no need people to assist, also no need to do vertical floor opening holes.
3. Low cost, easily install, use conveniently.

Product details

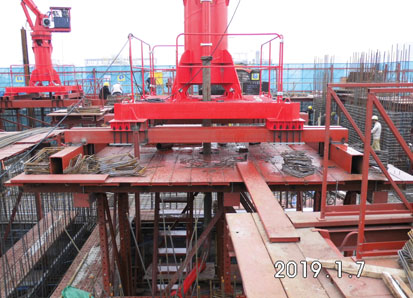

  • HGY21 413-298

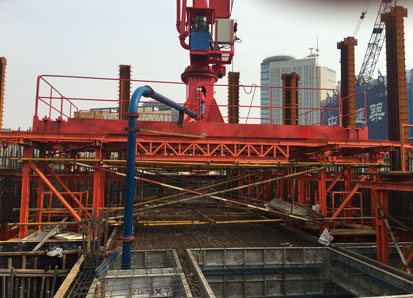

  • IMG_0078 413-298

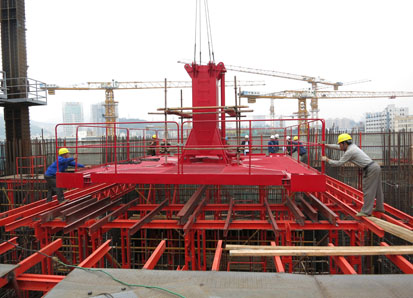

  • IMG_1161 413-298

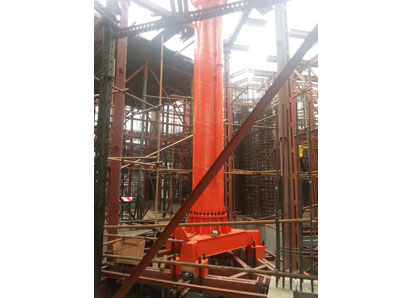

  • 20140701_135759 413-298---

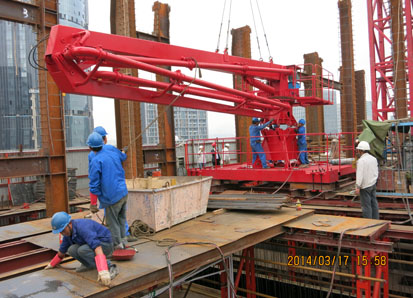

  • IMG_0093 413-298---

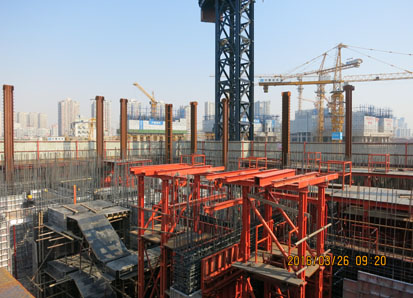

  • IMG_1551 413-298--

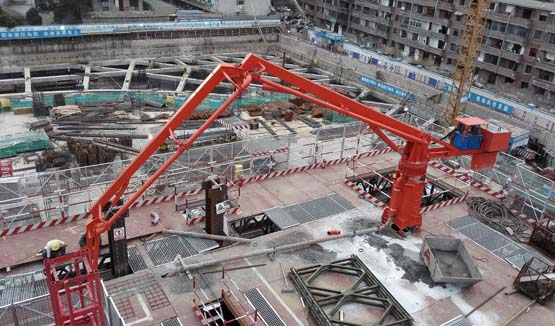

application example

  • tiff infomation

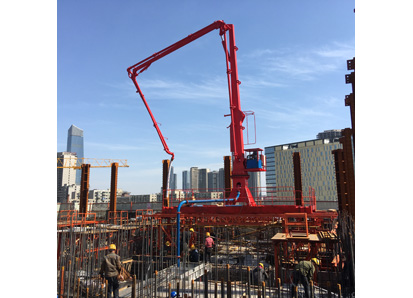

  • IMG_0036 413-298

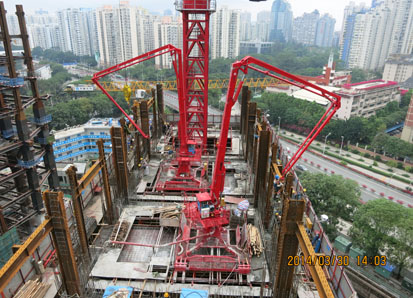

  • IMG_0220 413-298

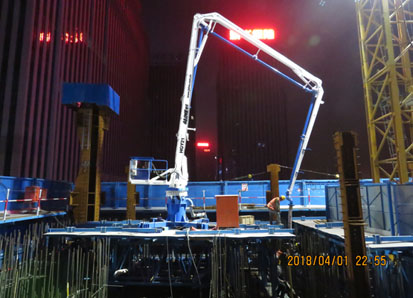

  • IMG_0359 413--298

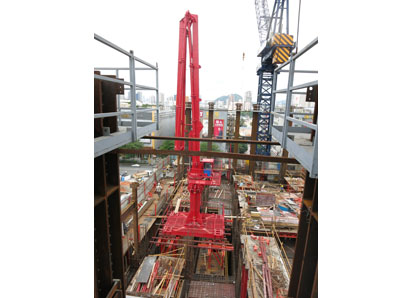

  • IMG_1210 413-298

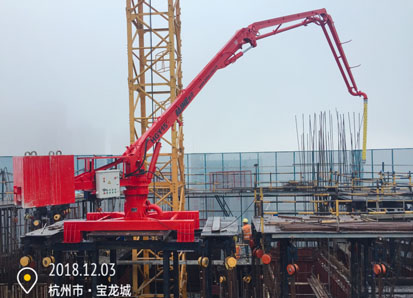

  • IMG_2879 413-298
  • OLYMPUS DIGITAL CAMERA

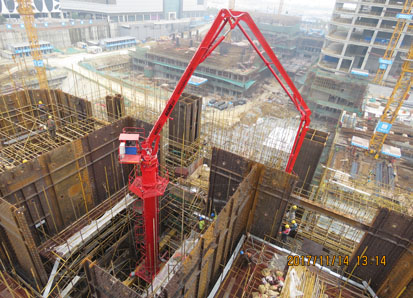

  • IMG_0045 413-298--

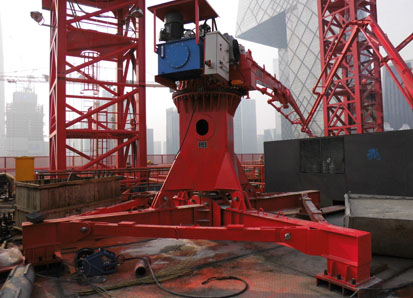

  • DSCI1330 413-298---
