Spider Concrete Placing boom

Product Description

Max.Horizontal Working Reach 13000/15000/17000/21000 mm

Total Weight without counterweight 2700/3200/4940/5020 kg

 1)The placing boom has a Z-shaped or R- shaped boom assembly with three foldable sections, which can swing through 360 degrees while luffing, folding/unfolding, thus allowing it to place concrete to form walls, pipes, columns, piles and other vertical structures without confined placement areas.

2)The boom assembly’s luffing, folding/unfolding and swinging are carried out hydraulically with buttons. The hydraulic and electrical system feature overload protectors, flow controls, alarms, phase sequence protectors and so on, which ensures the placing boom to have reliable performance, easy and smooth operation, and high safety.

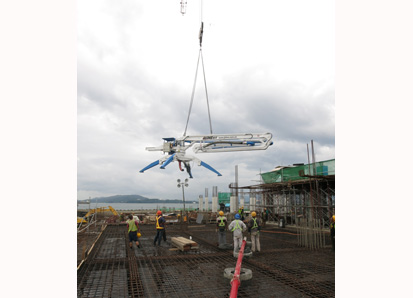

3)Featuring compact structure and lightweight, the placing boom can be completely lifted and transferred to any suitable places for concrete placement, such as floors, platforms, simply-structured racks or even trailers. It does not need to be fixed while working. In addition, it can be lifted off the placement sites when it is not needed, which leads to no disturbance to other jobs and easy maintenance.

4)The Spider Concrete Placing boom is well fit for the construction of different floors and for complicated jobsites without being influenced by the size and shape of floors.

Main Technical Specification

Model

HGY13

HGY15

HGY17

HGY21

1

Horizontal(m)

13

15

17

21

2

Length of booms (m)

1st section

3.7

6

6.67

7.96

2nd section

4.5

5

5.73

6.95

3rd section

4.8

4

4.6

6.1

3

Articulation of booms (°)

1st section

-2~84.4

0~90

2nd section

0~180

3rd section

0~180

4

Rotation angle (°)

360

5

Total weight (t)

Without counterweight

2.7

3.2

4.94

5.05

Counterweight

1.8

2.2

2.1

3.0

6

Delivery pipe dimension (mm)

Ф125

7

Length of hose (mm)

3000

8

Mode of operation

Radio Remote/Cable/Panle control

9

Output (kW)

4

5.5

10

Hydraulic pressure (MPa)

20

22

11

Power

380V/50Hz

Overall Dimensions

Product details

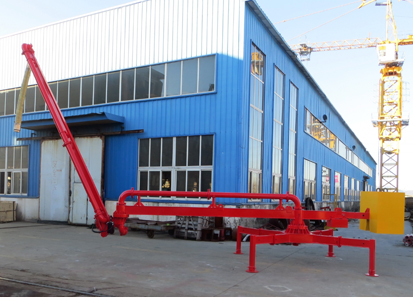

  • HGSY10-3 413-298

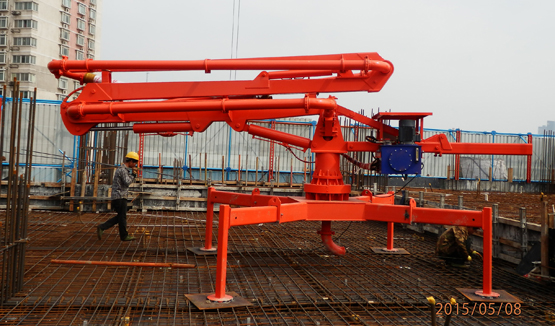

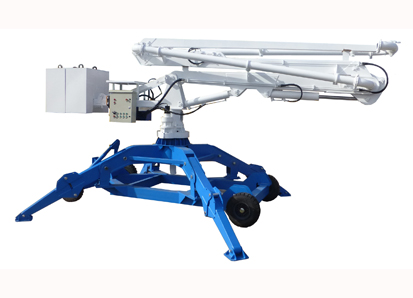

  • HGY13轮式 413-298

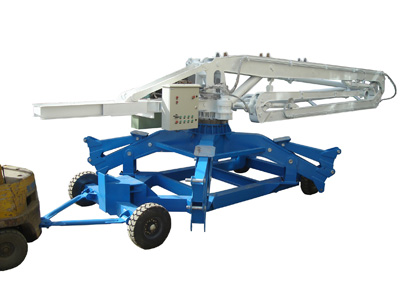

  • HGY15(轮式)2 413-298
  • HGY15马来西亚3 413-298

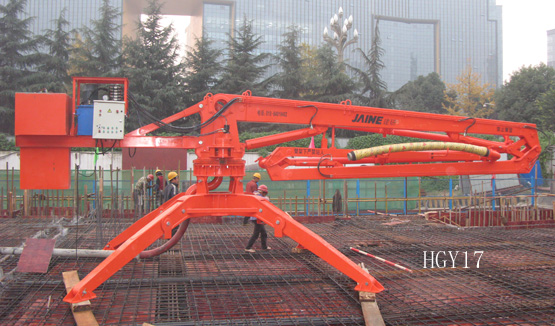

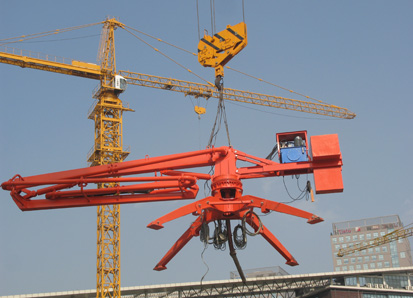

  • HGY17-5 413-298

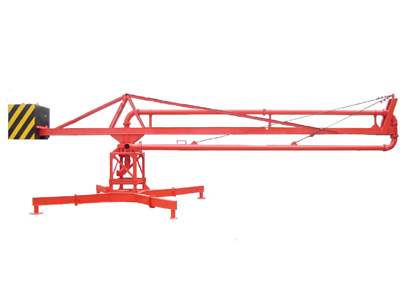

  • HGS13-1 413-298

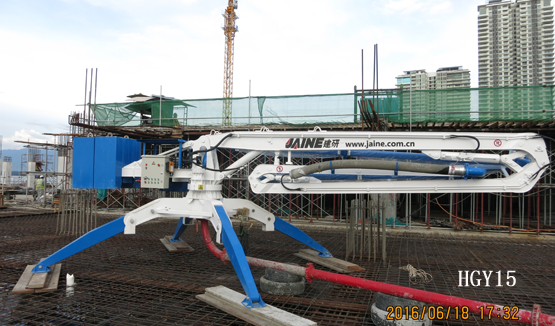

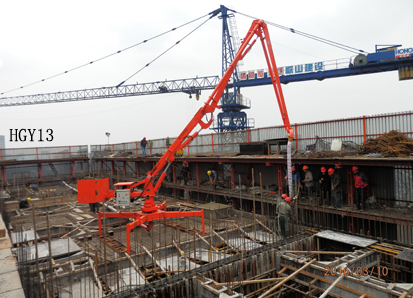

application example

  • OLYMPUS DIGITAL CAMERA

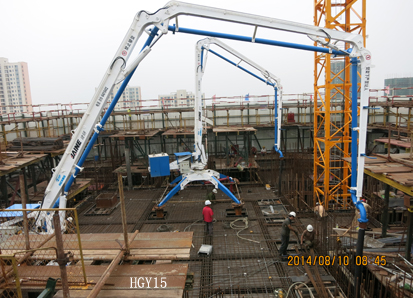

  • HGY15江苏中亿丰建设413-298

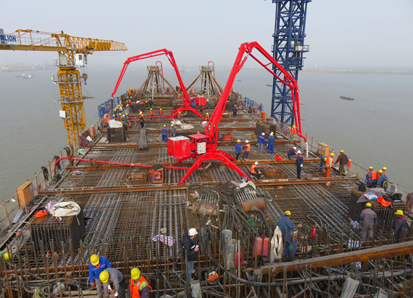

  • HGY15中铁大桥局沪通长江大桥 413-298
  • IMG_0668 413-298

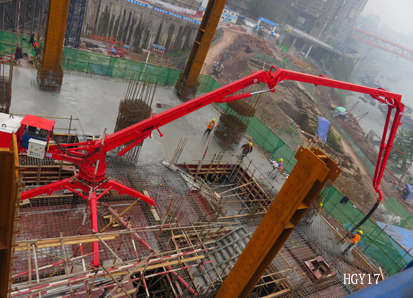

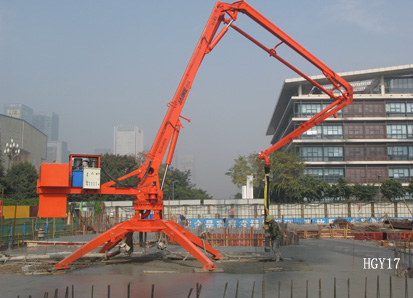

  • HGY17 413-298

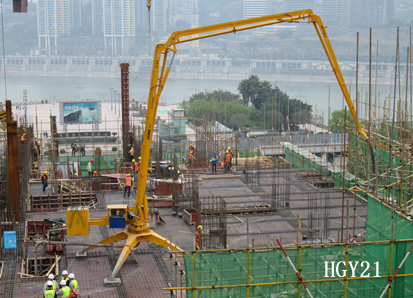

  • HGY13轮式555-326

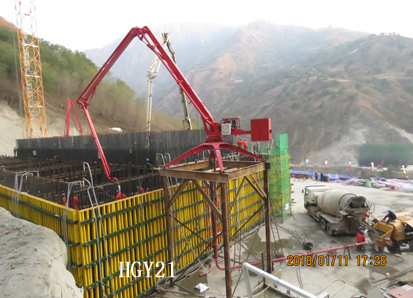

  • HGY21中交三公局双河特大桥格巧项目索塔承台1 413-298

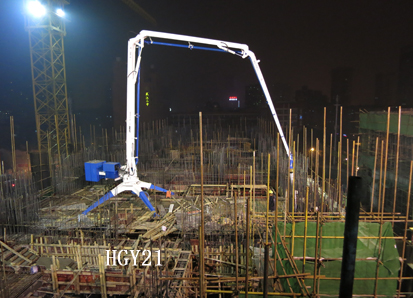

  • HGY21中建八局中南分公司 413-298

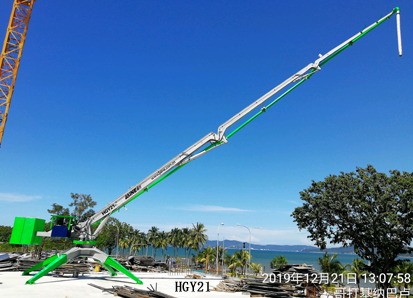

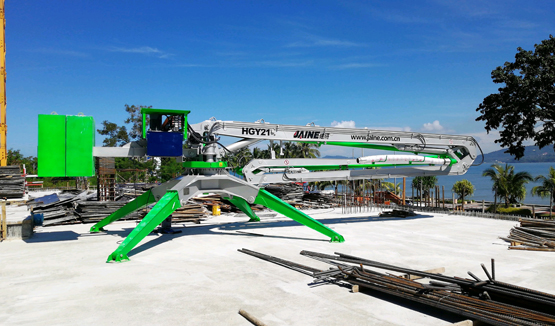

  • HGY21马来西亚4 413-298
