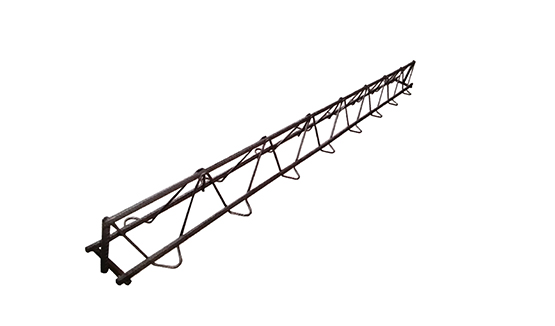

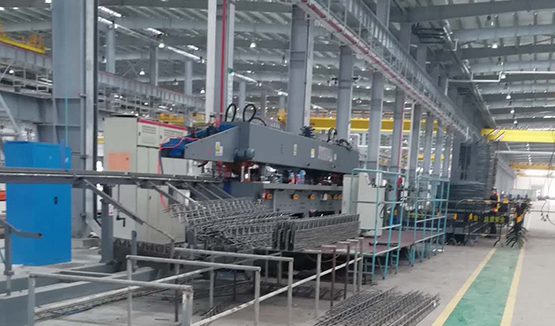

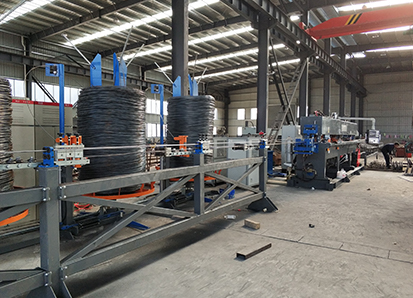

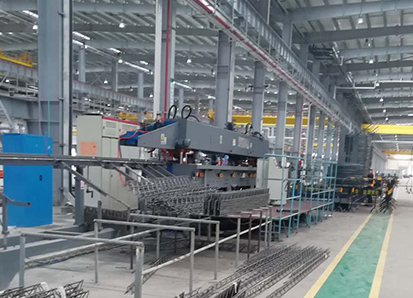

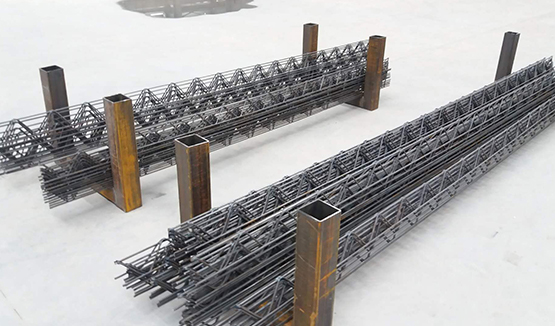

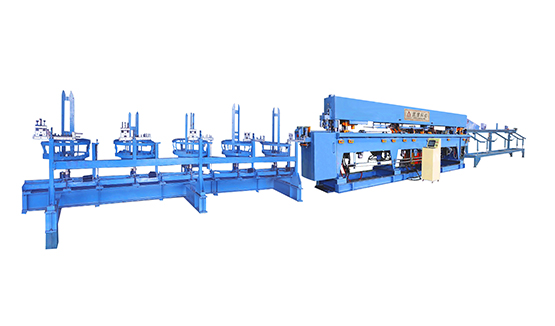

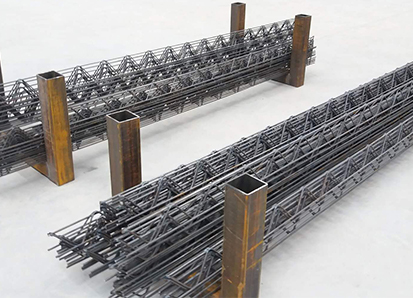

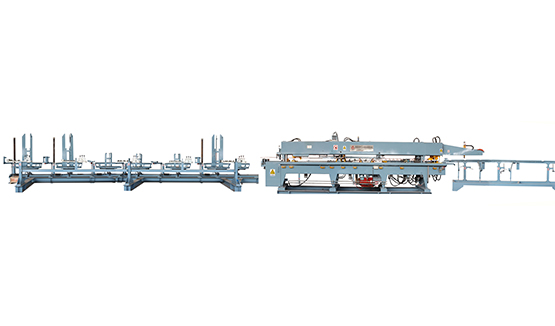

Automatic Lattice Girder Welding Line
Product Description
Model: GJH270
Assist Bar Diameter: Φ4-Φ8 mm
Upper Bar Diameter: Φ8-Φ12 mm
Lower Bar Diameter: Φ8-Φ12 mm
Welding Speed: 15-30 m/min
Height of Girder: 70~270mm
Technical Parameters
|
Model |
GJH270 |
|
Assist Bar Diameter |
Φ4-Φ8 mm |
|
Upper Bar Diameter |
Φ8-Φ12 mm |
|
Lower Bar Diameter |
Φ8-Φ12 mm |
|
Oil Pressure |
5-12Mpa |
|
Rated Power |
3*250kw |
|
Power Supply |
3 phase, AC380V,+10%～-10%, 50 |
|
Pneumatic System Pressure |
0.6-0.8Mpa |
|
Coolant Pressure |
0.3 Mpa |
|
Coolant Flow |
120L/min |
|
Coolant Temperature |
0≤30℃ |
|
Max. Welding Speed |
15-30 m/min |
|
Height of Girder |
70~270mm |
|
Section Spacing |
190-210mm adjustable |
|
Dimensions of All Line |
32000mm×3000×1400mm |
|
Working Capability |
＞ 800 m/h |
