Steel Wire Mesh Bender
Product Description
Model： GWW13 1500/2000/2500/3000/3500
Max. Bending Mesh Width: ≤1500/2000/2500/3000/3500mm
Mesh Line or Cross Wire Diameter: 6-13mm
Bending Angle: ≤180°
Bending Speed: 10°/sec
Max. Pressure of Hydraulic System: 16Mpa

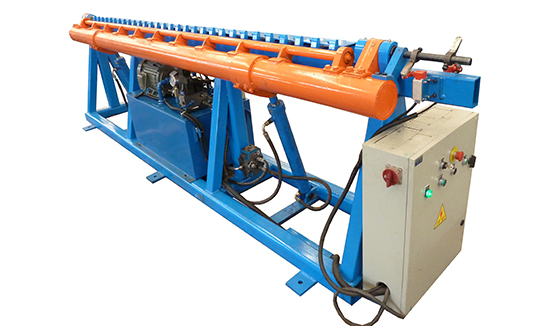

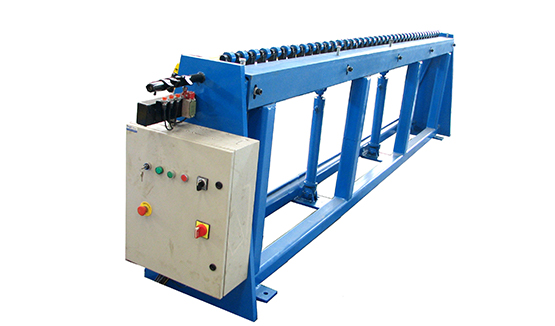

Steel Wire Mesh Bender
Automatic Steel Mesh Bender used for bending steel wire mesh, widely used in PC plant, rebar fabricate plant and so on.
Technical Advantages:
1 Easy Operation
2 High Efficient Productivity
3 Stronger Bending Strength
4 Reliable Working Performance
Technical Parameters
|
Model |
GWW13/2500 |
|
Max. Bending Mesh Width |
≤2500mm |
|
Min. Bending Mesh Length |
≥160mm |
|
Mesh Line or Cross Wire Diameter |
Φ6-Φ13mm |
|
Bending Angle |
0 ~ 180° |
|
Angle Tolerance |
±2° |
|
Max. Pressure of Hydraulic System |
16Mpa |
|
System flow |
20 L/min |
|
Rated Power |
7.5 KW |
|
Dimensions (L*W*H) |
2900×1100×1200mm |
|
Weight |
0.9 tons |
