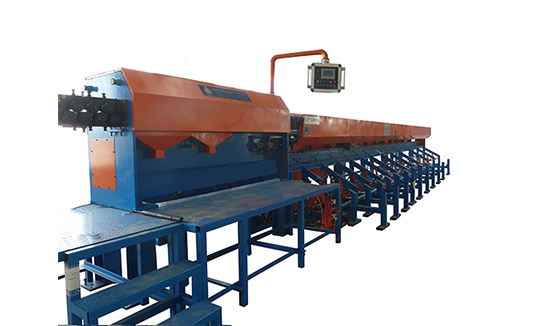

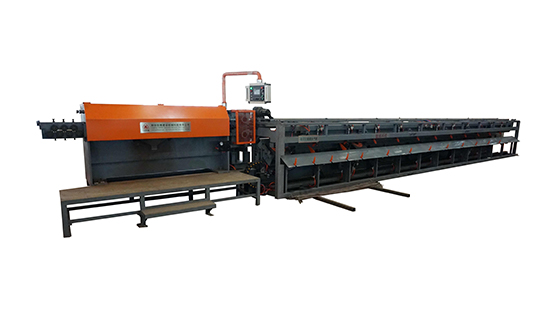

Automatic Rebar Floor Bar Bending Line

Product Description

Model: BJX12/BJX14

Working Capacity: Φ5 ~Φ12/14 mm

Max. Traction Speed: 120m/min

Max. Bending Speed: 180 °/sec

Bending Direction: Bi-Directional

Automatic Rebar Floor Bar Bending Line

Automatic Rebar Floor Bar Bending Line controlled by servo system, can automatically accomplish rebar feeding, straightening, bending and cutting working. manily used for high efficient large quantity processing floor bar bender, It’s good for big construction project or rebar fabricate plant.

Automatic Rebar Floor Bar Bending Line

Technical Advantages:

1 Excellent Working Performance

2 High Efficient Productivity

3 Low Operating Cost

Technical Parameters:

Model

BJX12

Rebar Diameter

Φ5 ~Φ12(mm)

Working Speed

0~120 (m/min)Stepless adjustable

Bending Speed

0~180 (°/s) Stepless adjustable

Bending Direction

Bi-Directional

Bending Short Side

100~300 (mm)

Short side tolerance

±8(mm)

Bending Long Side

2000~12000(mm)

Long side tolerance

±1(mm)

Max. Bending angle

135(°)

Angle tolerance

±1(°)

Total Power

45(kw )

Voltage

380 [V] – 50 [Hz] or Customized

Total Weight

18.5Ton

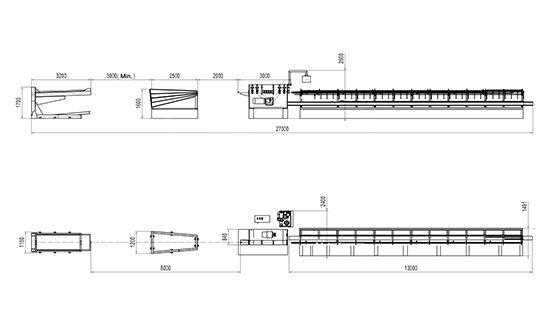

Overall Dimension

26 (L) x 2.4 (W) x 2.4 (H) m

Steel wire grade

HPB235, HPB300, HRB335, HRB400

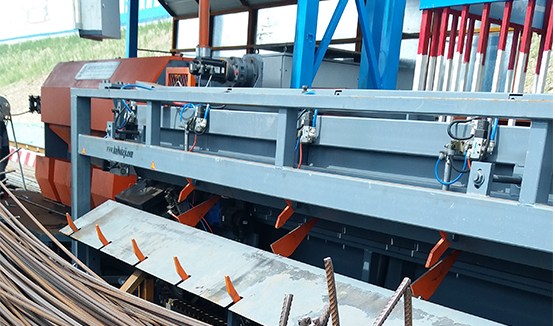

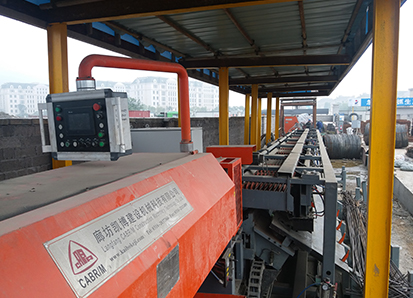

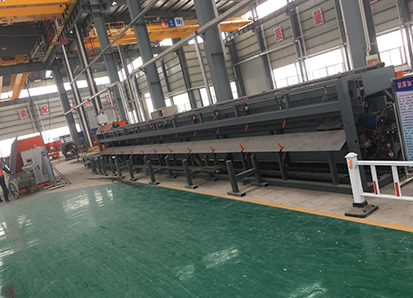

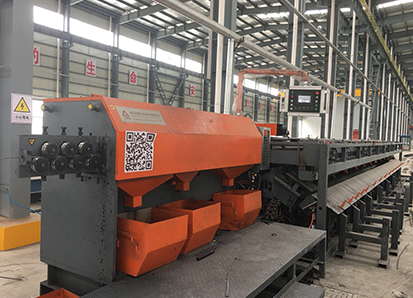

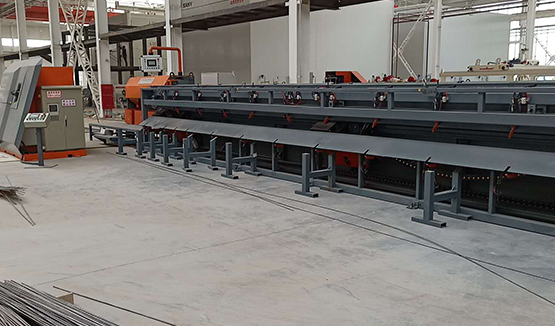

application example

  • Automatic Rebar Floor Bar Bending Line
  • Automatic Rebar Floor Bar Bending Line-1
  • Automatic Rebar Floor Bar Bending Line-2
