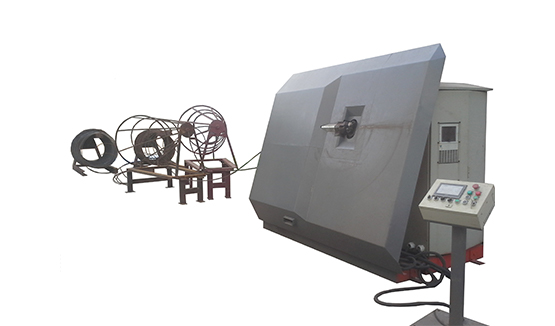

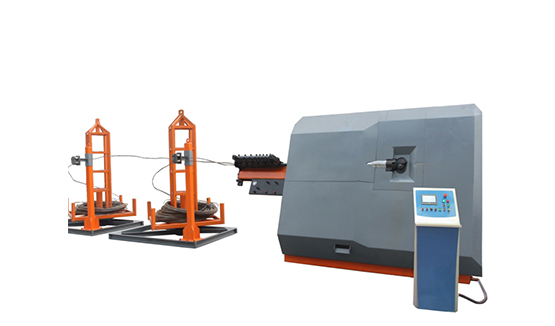

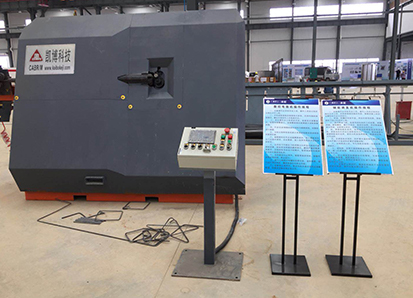

Automatic Rebar Stirrup Bending Machine

Product Description

Model GGJ13

Working Capacity 5-13mm

Bending Angle ±180°

Max. Traction Speed 110m/min

Max. Bending Speed 1450 °/sec

Automatic Rebar Stirrup Bender

The Automatic rebar stirrup bending machine controlled by servo system, can automatically accomplish rebar feeding, straightening, bending and cutting working. Could continuously bend various stirrup figure, mainly used for produce rebar hook and stirrup product in construction, bridge, high-speed road and rebar fabricate plant.

Automatic Rebar Stirrup Bending Machine

Technical Advantages:

1.Automatic wire feeding system (CNC)

2.Moveable air compressor design, to ensure better cooling effect, easy transportation and installation.

3.Split, multi-blade design (patented) to reduce consumption costs.

4.Large storage capacity can save 500 processing geometric graphics, high degree automation.

5.Automatic double wire feeding system, high processing efficiency.

6.High power feeding motor to ensure bending bar accuracy.

7.The intelligent fault identification alarm system maintenance more convenient.

8.Aerodynamic design observation door, easy adjustment and maintenance, and more security and fast.

9.Heavy-duty design line planes, equipped with a brake and buffer device can prevent chaotic lines caused by downtime.

10.High quality special material and high treatment to make straightening wheels, traction wheels, the metering wheel, longer life with operating costs.

11.Touch-screen console, easy to operate, and more fast.

12.Control system: SIEMENS, MITSUBISHI and YASKAWA SCHNEIDAR.

13.High efficiency and accurate processing precision.

Technical Specifications

Model

GGJ13

GGJ16

Single wire (mm)

5~13

5~16

Dual wire (mm)

5~10

5~12

Max bending angle(°)

±180

±180

Max traction speed (m/min)

110

90

Max bending speed (°/s)

1450

800-1000

Max side length of stirrup (mm)

1400

1400

Length accuracy (mm)

±1

±1

Angle accuracy (°)

±1

±1

Equipment size (L x B x H) (mm)

3500×1400×2100

3900×1700×2300

Weight (kg)

2400

2700

Average power consumption (kw/h)

4

5.5

Steel wire grade

HPB235、HPB300、HRB335、HRB400、HRB500

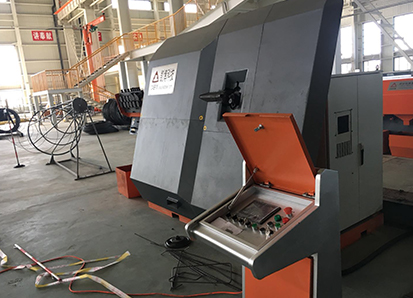

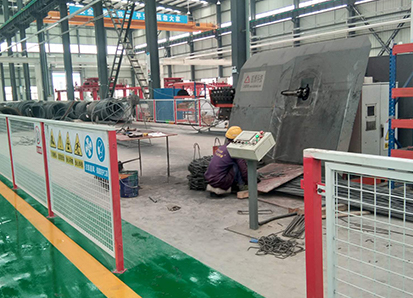

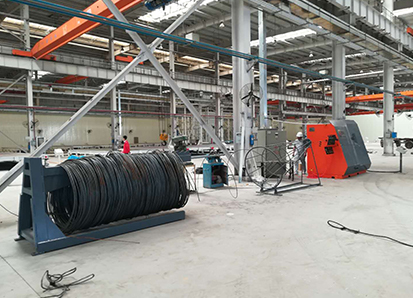

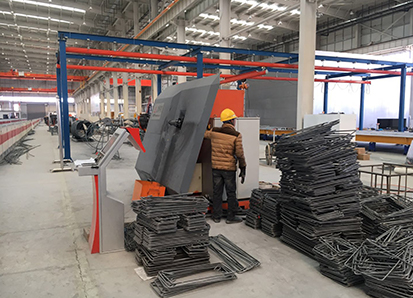

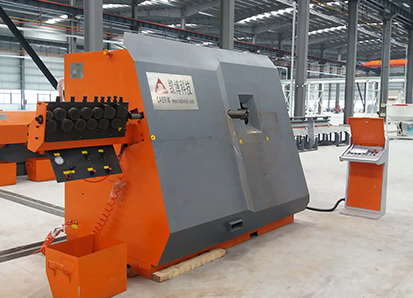

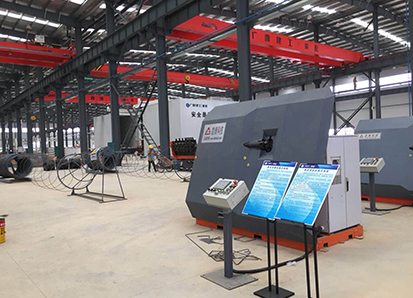

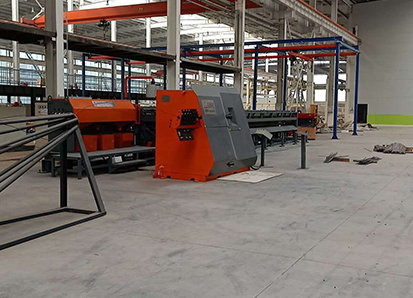

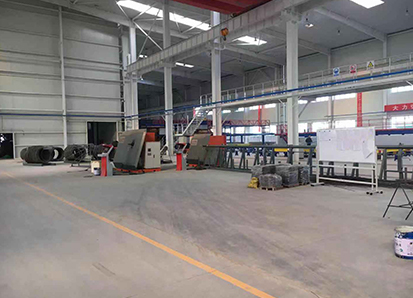

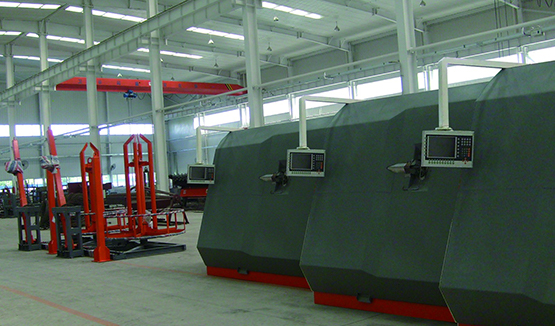

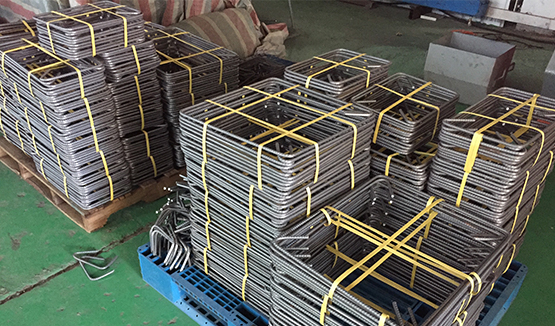

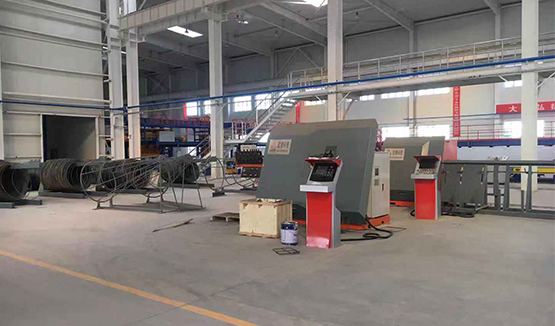

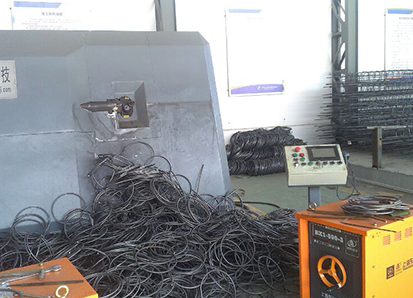

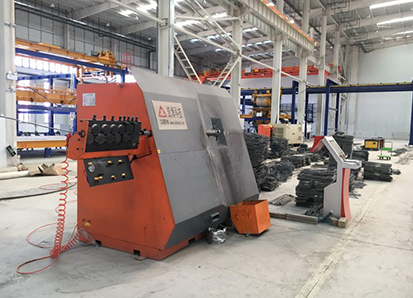

application example
