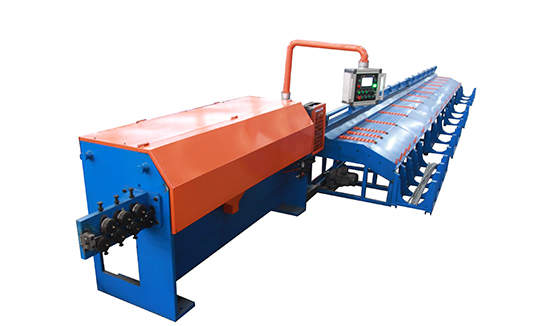

Automatic Rebar Straightening and Cutting Machine

Product Description

Model: GT5-12

Rebar diameter: Φ5-Φ12mm

Cut-off Length: 800mm-12000mm

Pulling speed: ~ 150m/min

Automatic Rebar Straightening and Cutting Machine

Automatic Rebar Straightening and Cutting Machine adopt rotating straightener and high-speed flying cutting mode, widely used for straightening and cutting smooth and ribbed, hot and cold rolled structural wires.

Automatic Rebar Straightening and Cutting Machine

Technical Advantages:

1.Pulling speed is adjustable(two speed or limitless adjustable, depend on the model), Max. Pulling speed 150m/min.

2.The wire length to be cut is manually set and measured using a release device in the extension.

3.High-speed flying shearcutting system. In the cutting mode, the advance wheels are  relieved from pressure.

4.Operating console with programmer, display and piece counter. After run-down of the pre-programmed rod.

5.Piece numbers, the machine is automatically brought to a standstill.

TECHNICAL PARAMETERS

Model

GT 5/12

Rebar diameter

Φ512 mm

Cut-off Length

800mm-12000mm

Could customized according to client’s requirements

Pulling speed

~ 150m/min

Length adjust mode

Manual/Automatic

Voltage Specification

3 phase, 380V, 50Hz

Cut mode

Servo shear

Control mode

PCC

(Programmable Computer Controller)

Speed Control

Steplessly Adjustable

Tensile strength of material

σb =210~650 Mpa

Length accuracy

±2 mm

Load capacity of Pay-off

3 t

Total power

46.5 kW

Dimension

2.6(L) x 1.0(W) x 1.98(H)m

Gross weight

~3t

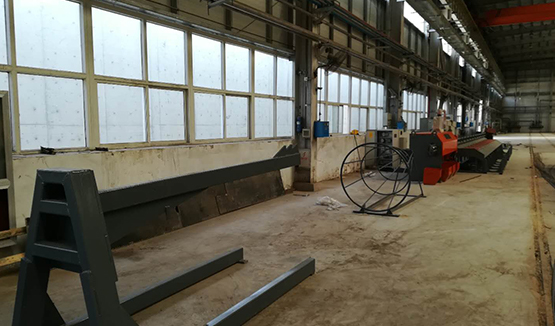

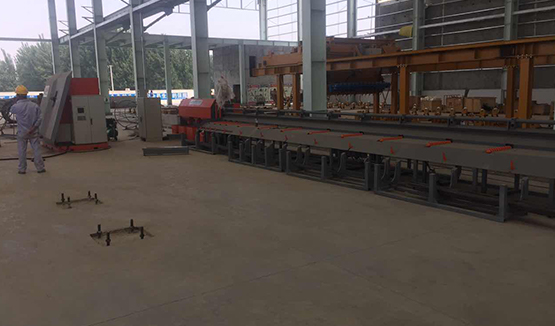

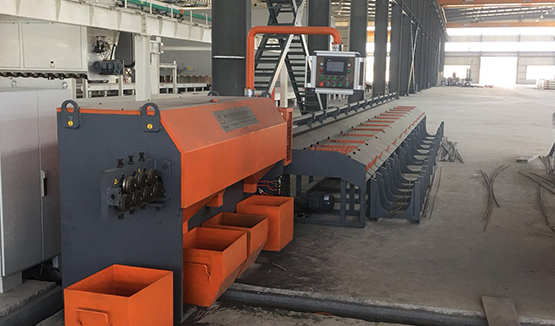

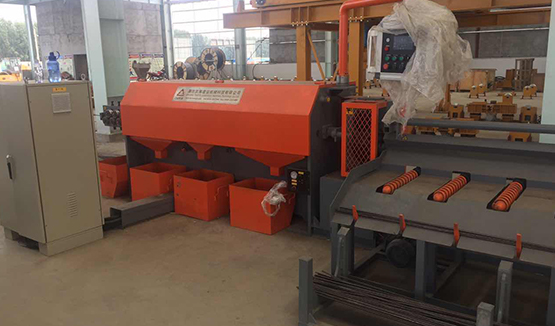

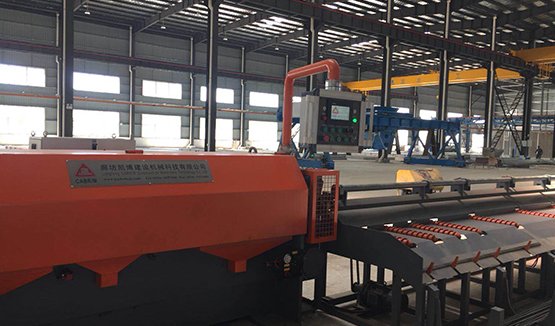

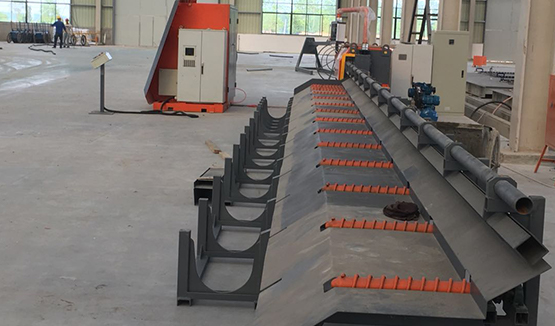

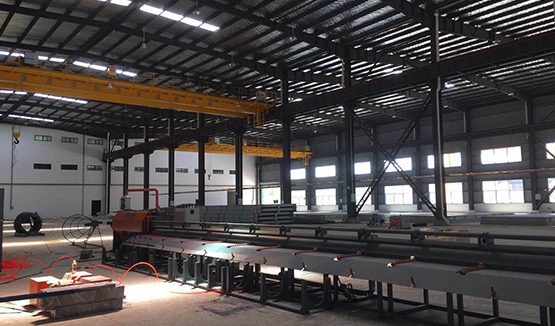

application example

  • Automatic Rebar Straightening and Cutting Machine-1

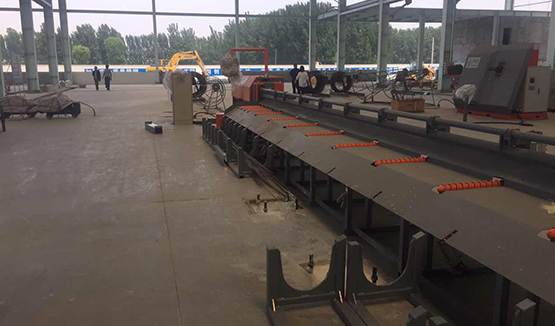

  • Automatic Rebar Straightening and Cutting Machine-12

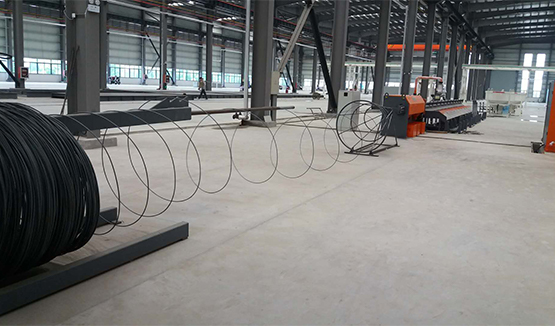

  • Automatic Rebar Straightening and Cutting Machine-4

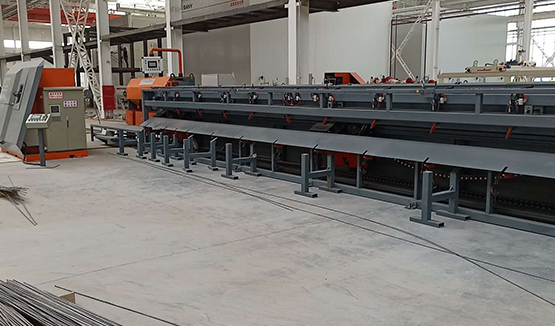

  • Automatic Rebar Straightening and Cutting Machine-8

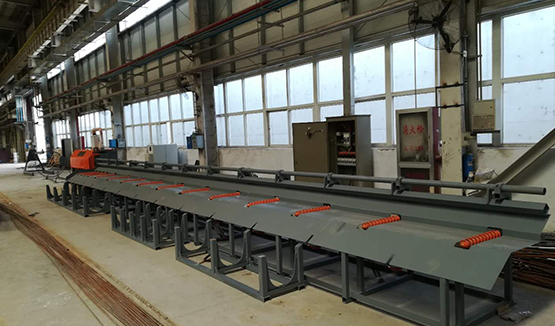

  • Automatic Rebar Straightening and Cutting Machine-6
  • Automatic Rebar Straightening and Cutting Machine

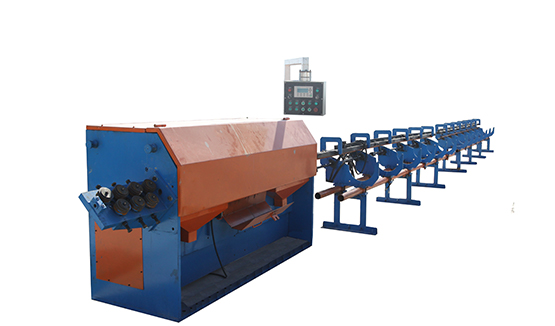

  • Automatic Rebar Straightening and Cutting Machine-2

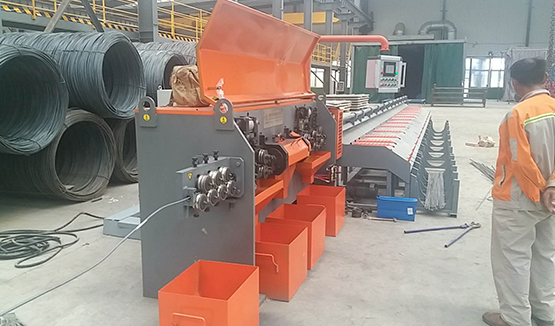

  • Automatic Rebar Straightening and Cutting Machine-7

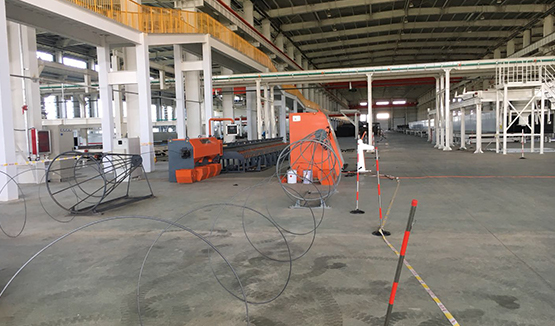

  • Automatic Rebar Straightening and Cutting Machine-9
  • Automatic Rebar Straightening and Cutting Machine-10
  • Automatic Rebar Straightening and Cutting Machine-13
  • Automatic Rebar Straightening and Cutting Machine-14
