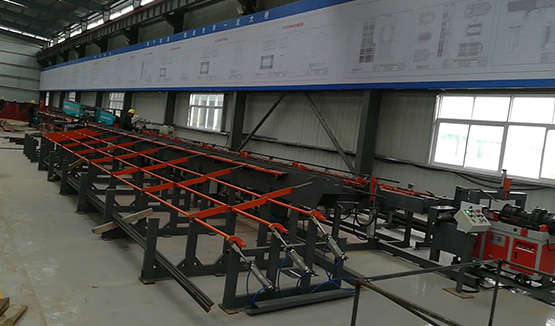

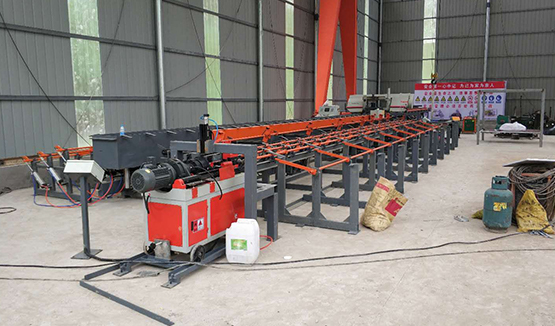

Automatic Rebar Threading Line

Product Description

Model: GSX-500

Sawing Working Capacity: Φ12-Φ50mm

Sawing Width: 300-500 mm

Finish Rebar Length: 1500~12000 mm

Length Tolerance: ±5 mm

Automatic Rebar Threading Line

Technical Advantages

① Blanking by saw cutting, end face is flat and level.

② Automatic sequence system, it can improve produce efficiency.

③ Raw material double layer blanking, this improves production efficiency more than 40%.

④ All direction clipping, that ensures life of saw.

⑤ It can separate single rebar from bunch.

⑥It matches with automatic alignment head structure. Location and cutting is very accurately.

TECHNICAL DATA

Sawing Working Capacity

Φ12-Φ50mm

Sawing Width

300-500 mm

Rebar Feeding Speed

48 m/min

Max. Raw Material Length

12000 mm

Aligning Length

9m, 12m

Finish Rebar Length

1500~12000 mm

Length Tolerance

±5 mm

 Thread Angle

60°

Working Pressure

0.4~0.7 MPa

Hydraulic System Pressure of Sawing System

3MPa

Electric Voltage

380V±5% 50Hz

 Temperature

-5~40℃

 Altitude

≤1000 m

 Humidity

≤85%

Overall Dimensions(L*W*H)

32000×8500×1700 mm

Rated Power

48KW

 Productivity



100pcs/h (Processing 32mm Rebar)

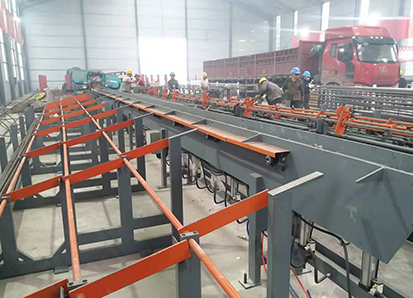

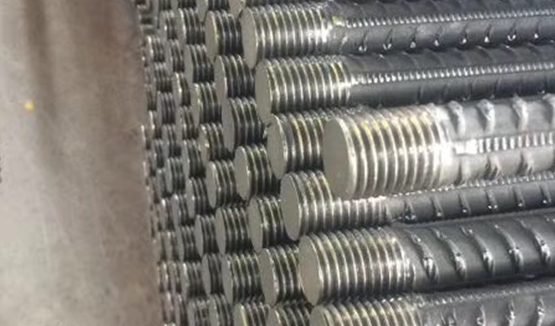

application example

  • Automatic Rebar Threading Line

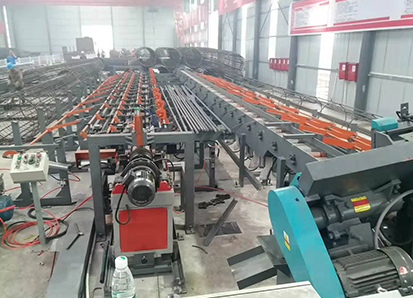

  • Automatic Rebar Threading Line-1

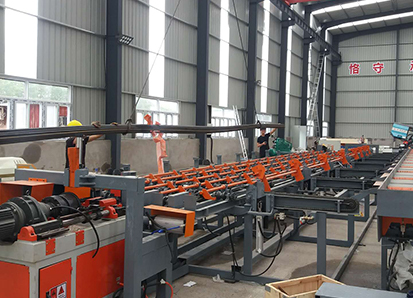

  • Automatic Rebar Threading Line-2
