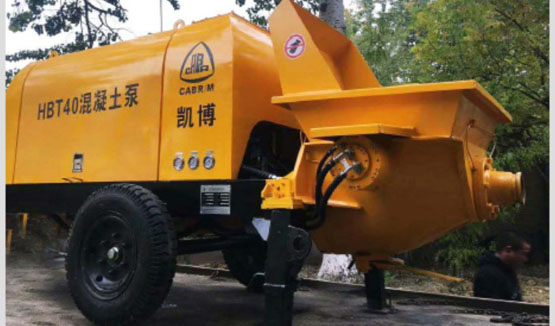

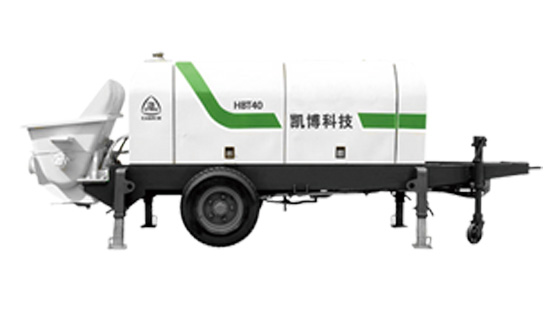

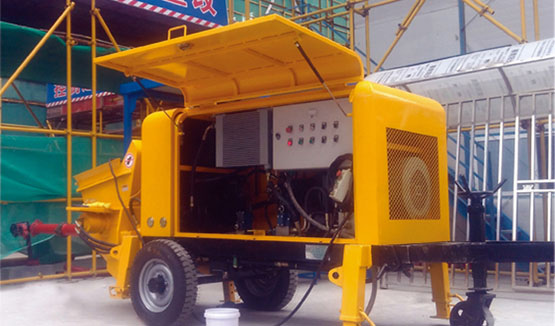

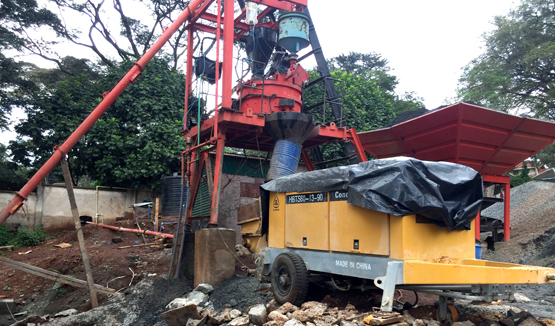

HBT concrete pump
Product Description
Maximum delivery volume(m3/h) 15、40、60/36、80/47
Maximum delivery horizontal distance(m) 390、570 、700、700
Maximum delivery vertical distance(m) 130、170、180、180
Product Features

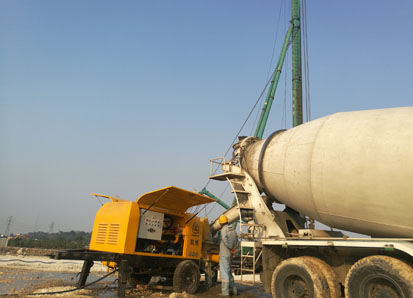

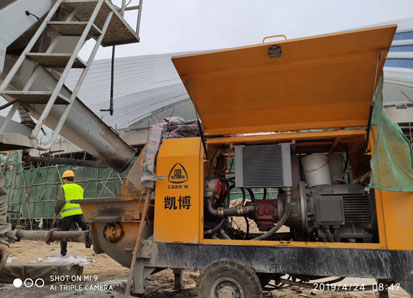

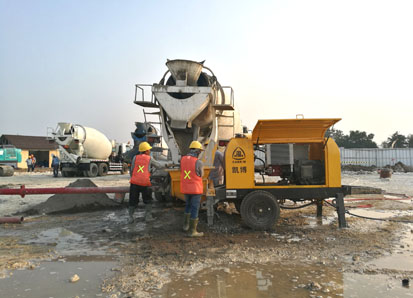

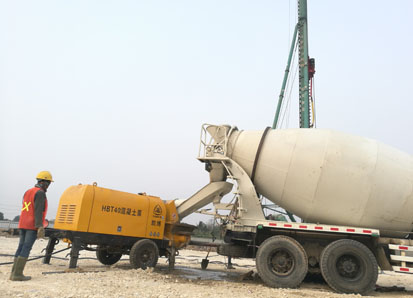

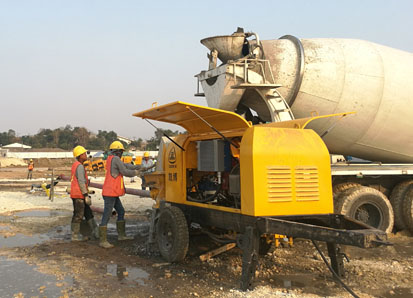

HBT concrete pump is suitable for concrete (fine stone concrete) transportation, grouting and grouting in construction projects.
1.S valve structure;
2.Large bore reversing oil cylinder with large reversing torque to avoid jamming;
3.Electric and hydraulic commutation technology (optional);
4.Long-distance wireless control technology;
5.Optimize the inner cavity of the hopper, with high suction efficiency and less residue;
6.Mature technology, strict testing before leaving the factory, reliable work, adapt to harsh working conditions.
Main Technical Specification
|
Model |
HBT15 |
HBT40 |
HBT60 |
HBT80 |
|
|
Maximum delivery volume(m3/h) |
15 |
40 |
60/36 |
80/47 |
|
|
Maximum delivery pressure(MPa) |
8 |
11 |
12.5/7.6 |
12.5/7.6 |
|
|
Maximum delivery distance(m) |
Horizontal |
390 |
570 |
700 |
700 |
|
Vertical |
130 |
170 |
180 |
180 |
|
|
Allowed maximum aggregate particle size(mm) |
Pipe diameter(φ80) |
20 |
20 |
– |
– |
|
Pipe iameter(φ100) |
– |
30 |
– |
– |
|
|
Pipe iameter(φ125) |
– |
– |
40 |
– |
|
|
Pipe iameter(φ150) |
– |
– |
– |
50 |
|
|
Hopper volume(m3) |
0.4 |
0.4 |
0.6 |
0.6 |
|
|
Feeding height(mm) |
1100 |
1100 |
1400 |
1400 |
|
|
Power(kW) |
22 |
55 |
90 |
110 |
|
|
Weight(kg) |
1800 |
2550 |
5100 |
5200 |
|
