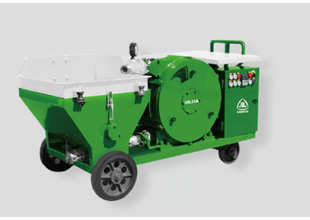

UH4 Mortar Combined Machine
Product Description
Rated delivery 4m3/h
Equivalent horizontal conveying distance 120m
Equivalent vertical conveying distance 40m
Product Features
This machine integrates the functions of raw material filtering, mixing and pumping, which is suitable for mortar construction with frequent mobile operations, especially suitable for grouting and rapid backfill grouting of railway, highway, tunnel, bridge and culvert, and water conservancy projects.
1.Equipped with a double-layer mixer to achieve rapid stirring pulping, secondary stirring, and temporary storage of suction;
2.Intelligent grouting control technology, can automatically identify the grouting status, automatic protection from overpressure and power failure, sensitive and reliable action;
3.Double-acting cam drive, reliable and durable, low maintenance workload.
Main Technical Specification
|
Model |
UH4 |
|
|
Rated delivery |
4m3/h |
|
|
Working pressure |
3MPa |
|
|
Equivalent horizontal conveying distance |
120m |
|
|
Equivalent vertical conveying distance |
40m |
|
|
Maximum particle size |
8mm |
|
|
Total power |
15.25kW |
|
|
Machine quality |
860kg |
|
|
Dimensions |
L |
1920mm |
|
W |
1570mm |
|
|
H |
1550mm |
|
|
Structure type |
Mixing and pumping integration |
|
