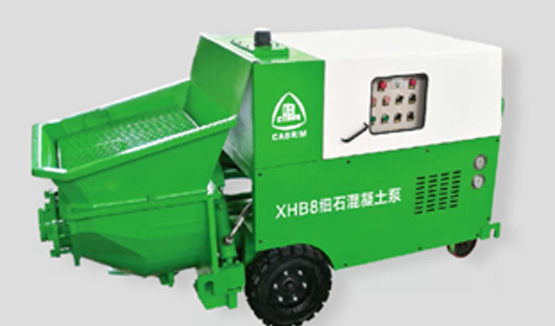

XHB fine stone concrete pump
Product Description
Maximum delivery volume 6 、8m3/h
Maximum delivery Horizontal distance 300 m
Maximum delivery Vertical distance 100 m
Product Features
This machine is suitable for high-rise building plastering, masonry, and transportation of mortar, fine stone concrete (bean stone concrete) or other similar slurry for construction columns, roofing, floor heating projects, high-speed rail, tunnels, etc.
1.The smooth design of the hopper cavity reduces the residual amount of slurry at the end of pumping;
2.Compact design, miniaturized size, can be used in places with limited space, flexible movement.
Main Technical Specification
|
Model |
XHB6 |
XHB8 |
||
|
Maximum delivery volume(m3/h) |
6 |
8 |
||
|
Maximum delivery pressure(MPa) |
7 |
7 |
||
|
Maximum delivery distance(m) |
Horizontal |
300 |
300 |
|
|
Vertical |
100 |
100 |
||
|
Allowed maximum aggregate particle size(mm) |
15 |
25 |
||
|
Power(kW) |
15 |
15 |
||
|
Weight(kg) |
800 |
900 |
||
|
Dimensions(mm) |
L |
2020 |
2050 |
|
|
W |
680 |
850 |
||
|
H |
1070 |
1200 |
||
