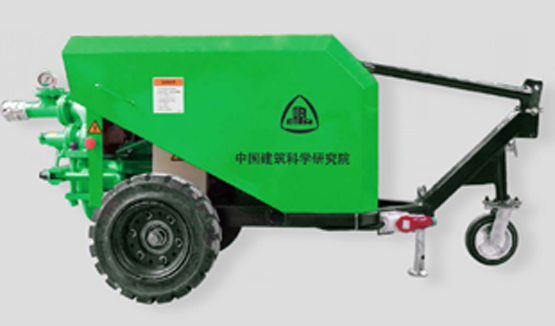

UB Mortar Pump
Product Description
Conveying capacity 4m3/h、0.5~4m3/h、8m3/h、10m3/h
Equivalent horizontal conveying distance 120、180、180、180 m
Equivalent vertical conveying distance 40、 60、 60、 60 m
Product Features

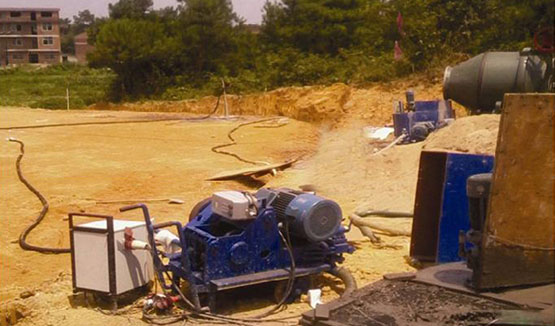

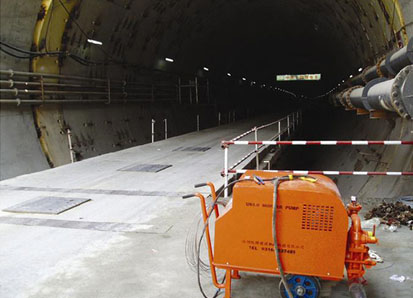

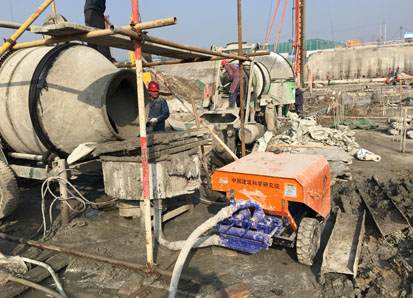

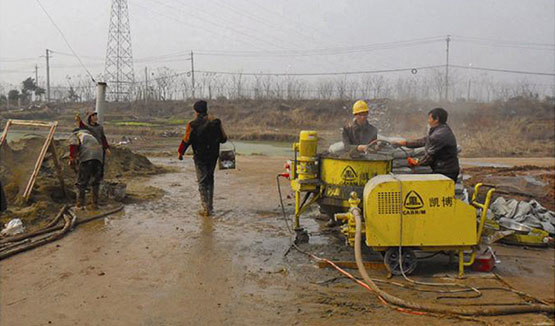

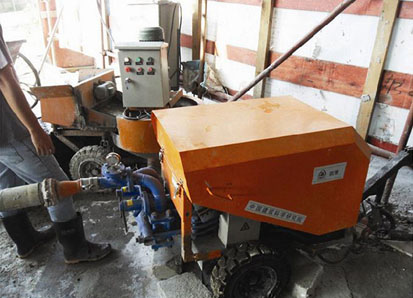

UB Mortar Pump is a cam driven piston pump, suitable for conveying, grouting and grouting of mortar and cement slurry and other materials.
Main Technical Specification
|
Model |
UB4B |
UB4C |
UB8 |
UB10 |
|
|
Conveying capacity |
4m3/h |
0.5~4m3/h |
8m3/h |
10m3/h |
|
|
Working pressure |
3MPa |
3.5MPa |
4MPa |
4MPa |
|
|
Equivalent horizontal conveying distance |
120m |
180m |
180m |
180m |
|
|
Equivalent vertical conveying distance |
40m |
60m |
60m |
60m |
|
|
particle size |
8mm |
8mm |
8mm |
8mm |
|
|
Motor Power |
7.5kW |
11kW |
11kW |
15kW |
|
|
Machine quality |
350kg |
450kg |
490kg |
710kg |
|
|
Dimensions |
L |
1550mm |
1550mm |
1850mm |
1850mm |
|
W |
700mm |
700mm |
800mm |
850mm |
|
|
H |
900mm |
900mm |
800mm |
800mm |
|
|
Structure type |
Single cylinder |
Single-cylinder speed regulation |
Twin cylinder |
Three cylinder |
|
