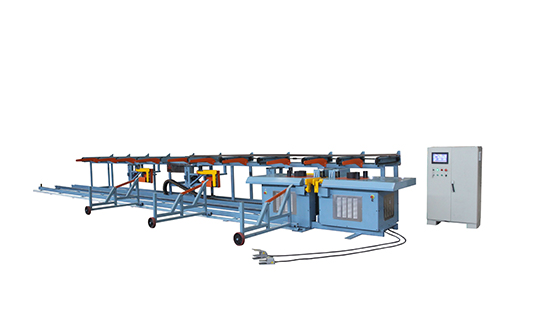

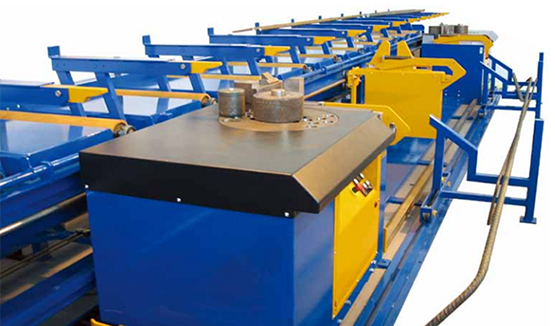

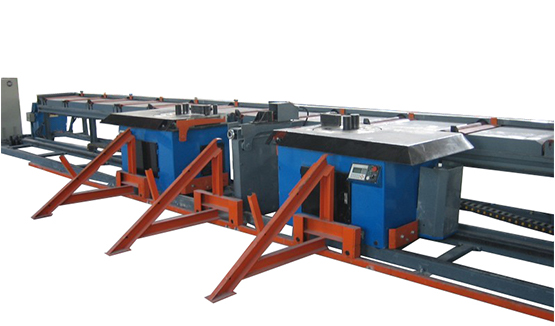

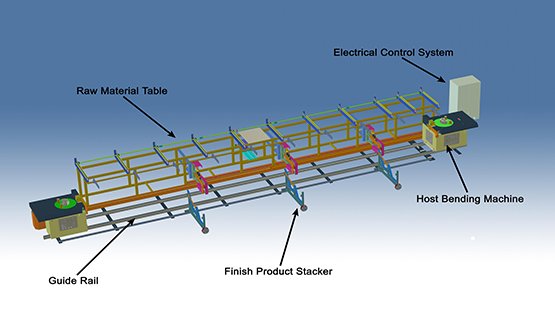

Horizontal Rebar Bending Line

Product Description

Model: GWX40

Working Capacity: 10-40mm

Max. bending angle(single directional): 0-180°

Max. bending angle (bidirectional): ±90°

Horizontal Rebar Bending Line

Technical Advantages:

1.High automatically, reducing labor intensity greatly;

2.Dual host, bringing fast positioning and high efficiency;

3.Matieral elevating machanism, a smart feeding method;

4.Counting by encoder with high bending accuracy;

5.Accurate gear positioning system for accurate bending length;

6.Advanced control system, and humanized operation way.

TECHNICAL DATA

Model

GWX40

Host Conveying speed(m/min)

6 – 30

Bending speed(r/min)

20°~72°/s

Pneumatic system pressure (Mpa)

≥0.6

Max. bending angle (bidirectional)

±90°

Max. bending angle

(single directional)

0-180°

Min. Distance between two heads

1200 mm

Max. Contra Bending Size

500 mm

Supply load (kg)

2000

Material Feed Speed

~ 7m/min

Accuracy of angle

±1°

Accuracy of length

±3mm

Power (kw)

19

Voltage specification

3 phase, 380V, 50Hz or customize

Overall dimensions (mm)

13800×3850×1310

Bending Capacity:

Bending Capacity

Æ12

Æ16

Æ18

Æ20

Æ22

Æ25

Æ28

Æ32

Æ36

Æ40



4

3

3

2

2

1

1

1

1

Bending Central Mandrel

50 mm

80 mm

120 mm

150 mm
