Hydraulic Type Rebar Shear Line

Product Description

Model: GQX160

Shear Force: 1600 KN

Cutting Blade Width: 100 - 250 mm

Max. Cutting Frequency: 24times/min

Material Transmission Speed: 50 m/min

GQX160 Hydraulic Type Rebar Shear Line

Technical Advantages:

1.It has functions of automatic rebar transmission, positioning and collection.

2.Shear line has accurate dimension detecting, high efficient transmission and is reliable.

3.The collection of finished product adopts kinds of stores methods, which decrease the depending on hoisting equipment.

4.Especially fit for processing rebar of big diameter and batch production. When cutting the same standard rebar in a big batch, the shear line can cut in amount that improves efficiency.

5.Cutting ability is strong and achieves the highest level among competitors in this industry. For Grade HRB400 rebar, it can shear diameter not bigger than 32mm in a full row.

Technical Specifications

Model

GQX160

Shear force

1600 kN

Cutting blade width

250 mm

Max. Cutting frequency

24 times/min

Material Transmission Speed

60 m/min

Raw material max length

12000 mm

Cutting length range

1500~12000 mm

Working air pressure

0.5~0.7 MPa

Length Tolerance

± 5 mm

Power

20 kW

voltage

380V±5% 50Hz or customize

Rebar Grade

HRB400, Tensile strength is 570Mpa

Overall Dimensions (L*W*H)

29040*5080*2850mm

Cutting No.(Piece)

(σb ≤570MPa)

Φ40 mm

1



Φ32mm

2



Φ25 mm

4



Φ20 mm

6



Φ16mm

8



Φ12mm

12

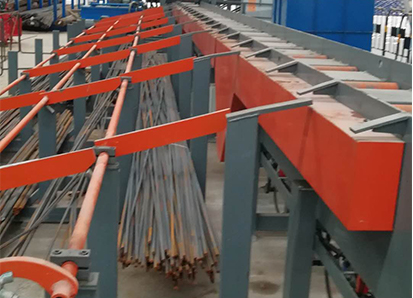

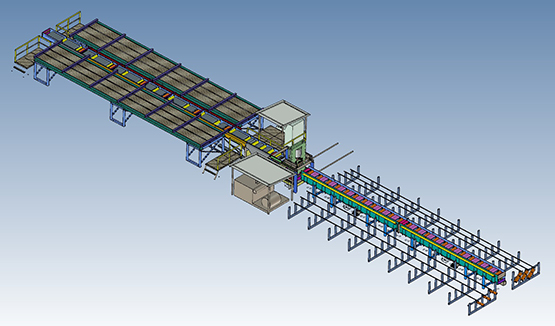

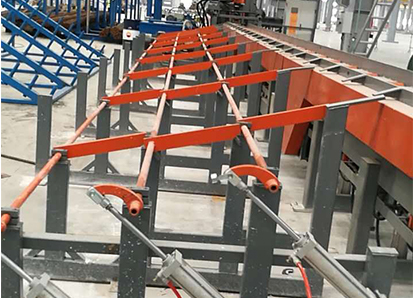

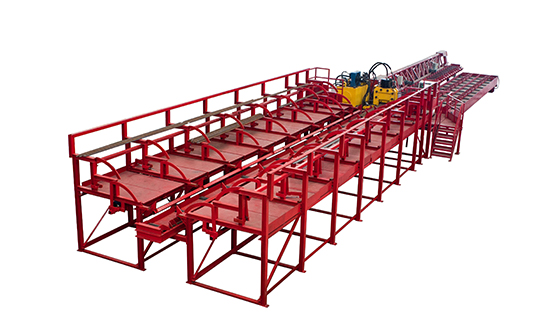

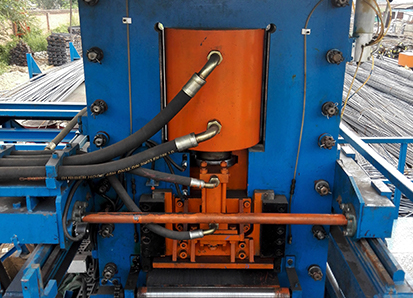

Product details

  • Hydraulic Type Rebar Shear Line-2
  • Hydraulic Type Rebar Shear Line
  • Hydraulic Type Rebar Shear Line-5

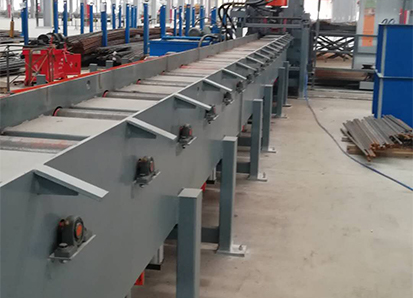

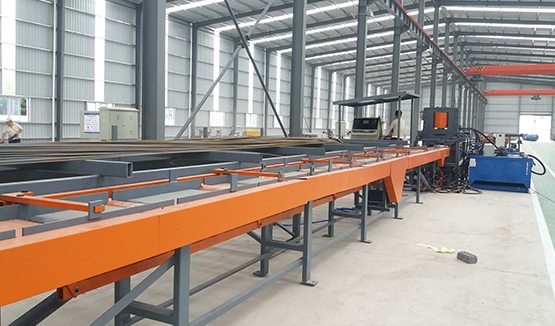

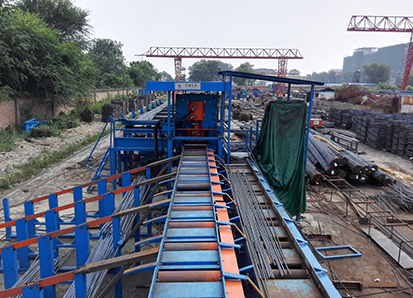

application example

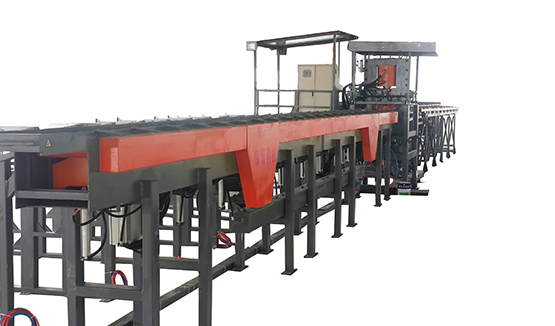

  • Hydraulic Type Rebar Shear Line-1
  • Hydraulic Type Rebar Shear Line-4
  • Hydraulic Type Rebar Shear Line-5
