Horizontal Rebar Bending Line
1. High Working Efficiency. 2. High accuracy, adopt servo motor system. 3. East …
Rebar Bending Center
Product Description
Model GWXL5-25
Structure Feature Vertical Bending Line, Five Bending Heads
Bending Speed 9 r/min
Bending Angle 0 ~ 180°

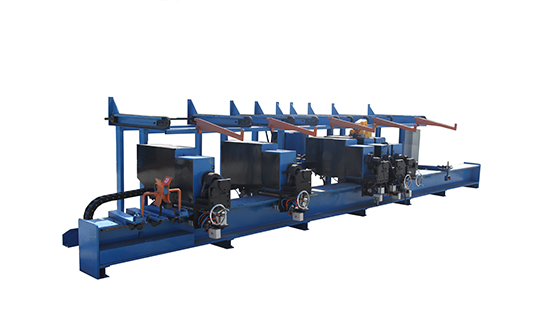

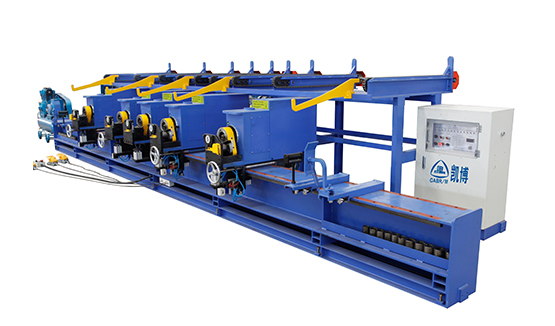

Five Bending Heads Vertical Rebar Bending Center

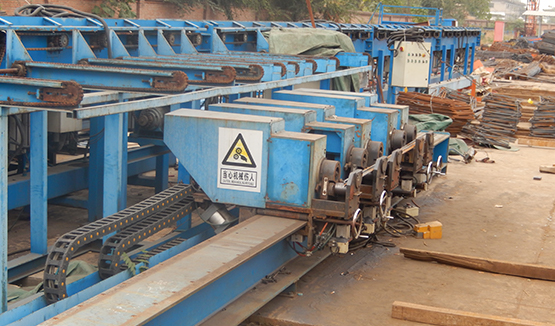

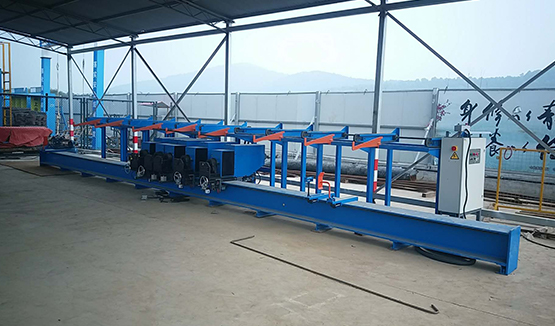

The center of Vertical Rebar Bending Line adopts digital control. This equipment’s features are simple operation, convenient maintenance and economic utility. It can also realize automatic length measurement, automatic bending clamp, rapid prototyping and other functions. The control program of imported PLC and CNC stores hundreds of figures and is equipped with database. It applies advanced designing concept and adopts imported servo motor driving and controlling. Therefore, it realizes two-way digital control bending and accomplishes more than 20 angles figures. The producing efficiency is high. It can process 5500 sticks everyday on average, which replaces 12 workers and is more than 10 times of traditional processing equipment. This equipment especially applies to highway bridge construction site and rebar concentrated processing factory, etc.
Technical Advantages
1. Control system adopts imported high-performance PLC and high definition touch screen with convenient operation and sensitive response.
2. Mobile host adopts imported servo. Original position control mode improves resetting precision.
3. Bending host adopts imported servo to ensure rebar bending precision.
4. High intensity mobile host track is well wear and the host can rapidly and steadily move.
5. Retractable bending axis realizes rebar two-way bending. It is convenient for rapid processing of complicated figure.
6. It can process many rebar one time so that increases efficiency.
7. Equipped with database, it prestores many figures for users to choose. On the other hand, there is figure editing system. Users can edit and store themselves.
8. It owns high degree of automatic processing. It can automatically finish moving and bending without people participation. So it improves safety.
Technical Data
|
Model |
GWXL5-25 |
|
Bending Speed |
9 r/min |
|
Bending Angle |
0 ~ 180° |
|
Min. Short Side |
150 ~ 230 mm |
|
Supply Speed |
4.75 m/min |
|
Supply Load |
2000 kg |
|
Total Power |
10 kw |
|
Voltage |
380±5%V, 50Hz |
|
Pneumatic system pressure |
≥0.6Mpa |
|
Dimensions (with rack) |
8040*2276*1570 mm |
|
Total Weight |
About 5 tons |
Bending Capacity
|
Dia. (mm) |
Φ10 |
Φ12 |
Φ14 |
Φ16 |
Φ18 |
Φ20 |
Φ22 |
Φ25 |
|
GWXL5-25 |
9 |
7 |
6 |
5 |
3 |
2 |
2 |
1 |
