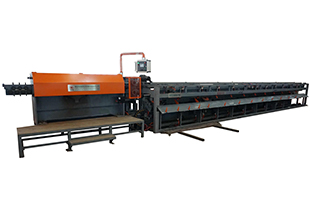

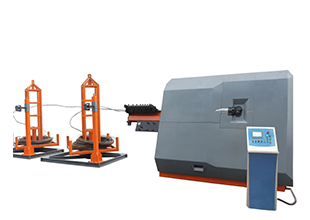

Automatic Rebar Stirrup Bending Machine
1 Reliable Working Performance 2 Top Rate Productivity 3 Low Operating Cost 4 Ea…
Parallel Thread Rebar Splicing with Rolled End
Product Description
Model GHB32/GHB40/GHB50
Working Capacity 12-50mm
Rebar Grade HPB335, HRB400 and HRB500
Max. Thread Length 130mm / 350mm
Material C45 or 40 Cr

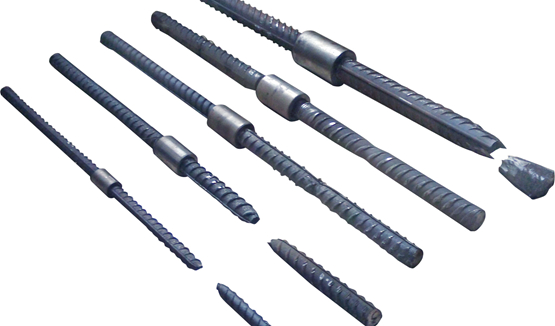

Parallel Thread Rebar Splicing with Rolled End
Rebar stripping and rolling parallel thread splicing technology is CABR’s patent. This rebar mechanical splice mode is very popular in China. CABR rebar parallel thread splcing system designed for the connection of concrete reinforcing bars from Φ12~Φ50mm. We also could producing rebar thread and coupler as your technical requirements.

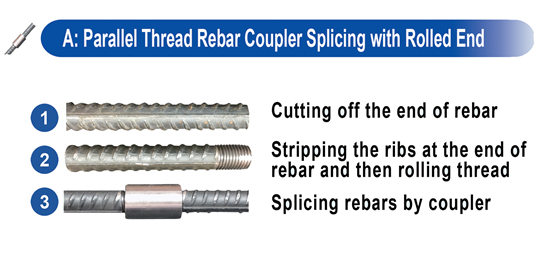

Three Steps Manufacturing Process
1. Cutting off the end of rebar;

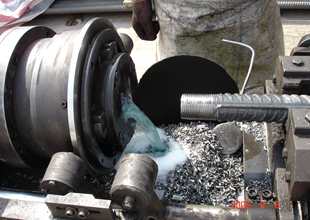

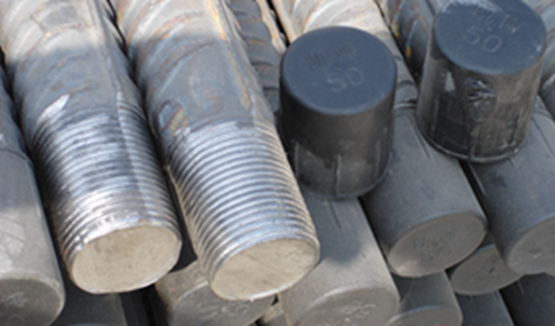

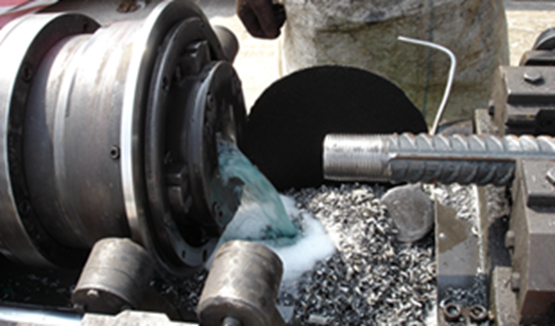

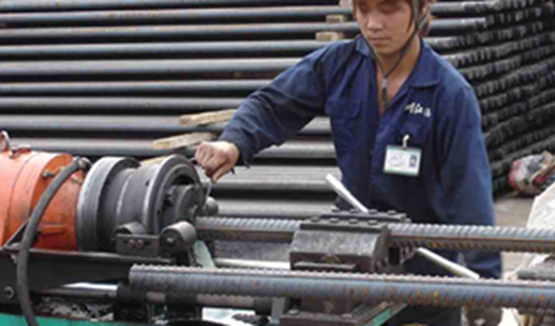

2. Stripping the ribs at the end of rebar and then rolling thread;

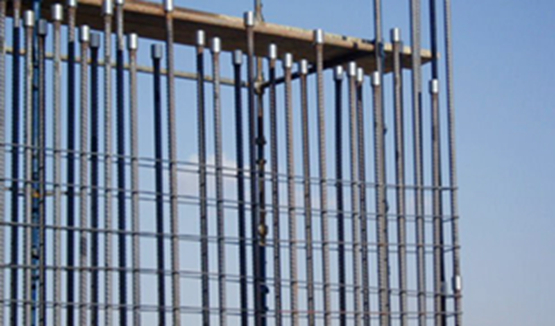

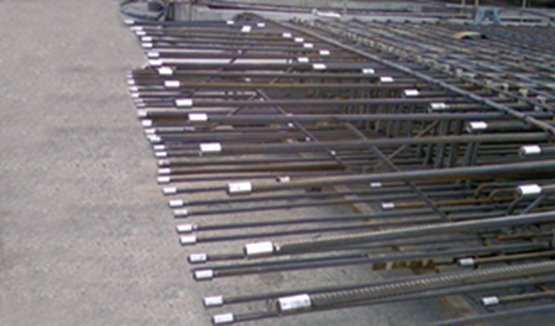

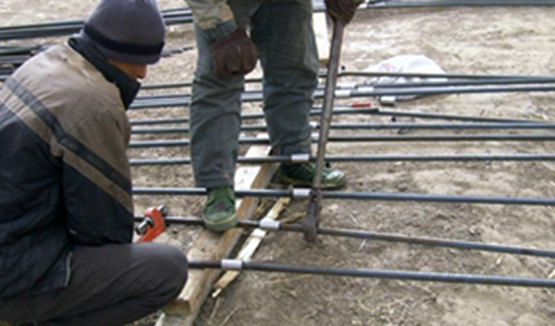

3. Splicing rebars by coupler.
Technical Advantages
1) High splicing strength, which could exert ultimate tensile and compression strength of rebar, it could satisfy the requirements stipulated in the Chinese standard JGJ107, American standard UBC1997, British standard BS8110, French standard NF35-20-1, German standard DIN1045, ISO15835 and other requirements in the relevant standards;
2) Easy to operate and maintain, no need for technicians, fast splicing on construction site;
3) High production efficiency, 300 to 500 thread could be produced during one shift. The splicing could be produced in advance without influencing the construction period;
4) Inexpensive to purchase, maintain and repair.
5) Environment-friendly, safe, no environment and weather restrictions.
6) Manufactured under strict quality assurance plan ISO 9001.

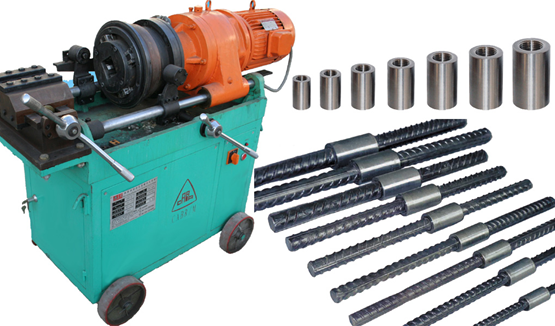

Technical Data
|
Name |
Rebar Rib-Peeling and Thread Rolling Machine | |||
|
Model |
GHB32 |
GHB40 |
GHB50 |
GM350 |
|
Diameter of Rebar |
12 – 32 mm |
16 – 40 mm |
25 – 50 mm |
16 – 40 mm |
|
Speed |
87 RPM |
87 RPM |
||
|
Maximum length of thread |
90mm |
350mm |
||
|
Rated Power |
3 kW |
4 kW |
5.5 kW |
4 kW |
|
Voltage |
380[V] – 50 [Hz] or customized |
|||
|
Total Weight |
500 kg |
590 kg |
680 kg |
680KG |
|
Dimension |
– |
– |
– |
|

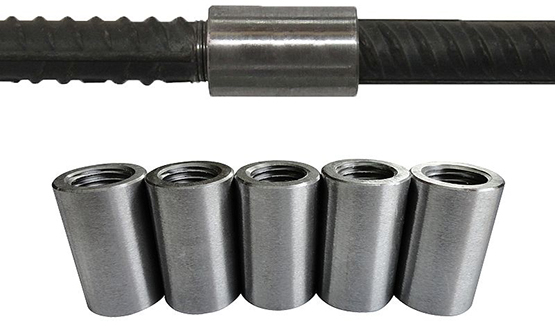

Technical Data of Rebar Coupler
|
Rebar Dia. (mm) |
Coupler Length (L) (mm) |
Outside Diameter (D) (mm) |
Screw Thread Size (mm) |
Thread Angle (°) |
Weight (kg) |
|
Z12 |
32 |
19.5 |
M12.7*1.75 |
60°/75° |
0.048 |
|
Z14 |
36 |
23 |
M14.8*2 |
60°/75° |
0.072 |
|
Z16 |
40 |
26 |
M16.5*2 |
60°/75° |
0.091 |
|
Z18 |
46 |
29 |
M18.5*2.5 |
60°/75° |
0.153 |
|
Z20 |
50 |
32 |
M20.5*2.5 |
60°/75° |
0.21 |
|
Z22 |
54 |
35 |
M22.5*2.5 |
60°/75° |
0.286 |
|
Z25 |
62 |
40 |
M25.6*3.0 |
60°/75° |
0.381 |
|
Z28 |
68 |
44.5 |
M28.6*3.0 |
60°/75° |
0.568 |
|
Z32 |
76 |
51 |
M32.6* 3.0 |
60°/75° |
0.692 |
|
Z36 |
84 |
57 |
M36.5* 3.0 |
60°/75° |
0.923 |
|
Z40 |
105 |
63 |
M40.2* 3.0 |
60°/75° |
1.346 |
|
Z50 |
125 |
79 |
M50.4* 3.5 |
60°/75° |
1.521 |
|
Rebar Grade |
Yield strength: 500Mpa, Tensile strength: 630Mpa -In China its model: HRB500 |
||||
|
Material |
45# High quality carbon steel or according to customers’ requirements |
||||
