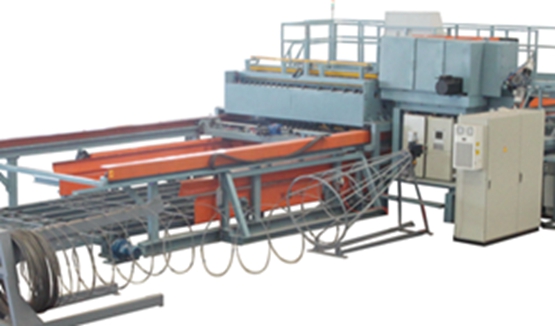

Automatic Steel Mesh Welding Line, Coil Wire+ Coil Wire

Product Description

Model GWC-ZA/ZB/PA/PB

Line Wire and Cross Wire Feed Coil Wire

Mesh Width 1250/1800/2600/2800/3300/4000mm

Max. Working Capacity 12+12mm

Welding Speed 60-120 times/min

Automatic Steel Mesh Welding Line

Automatic Double Coil Wire Steel Mesh Welding Line. Mesh Line Wire and Cross Wire all feed from coil wire. This machine is modular in design and production to meet the different needs of customers. This machine has high productivity and mainly for mass production. This machine was designed for the large batch manufacture of standard as well as engineered mesh in sheet.

Welding materials:cold rolling ribbed steel wires and bars, hot rolled ribbed steel wires and bars, hot rolled ribbed steel wires and bars, plain steel bars, galvanized steel wire rope, and so on.

Automatic Steel Mesh Welding Line, Coil Wire+ Coil Wire

Technical Advantages

1. High welding quality.

2. High accurate steel mesh size

3. High automatically working;

4. high production efficiency

5. Easy and convenient operation;

6. PCC control style

7. Wide range of welding

Technical Specification

Model

GWC-ZA

GWC-ZB

GWC-PA

GWC-PB

     Max. Working width (mm)

2600,2800,3300

2600,2800,3300

2100

2600,2800,3300

  Line wire space (mm)

100,150,200,250,300,350,400

100,150,200,250,300,350,400

50~200(无级)

100,150,200,250,300,350,400

Cross wire space (mm)

50~400

steplessly

50~400

steplessly

25~200

steplessly

50~400

steplessly

Line wire diameter (mm)

5.0~12.0

5.0~12.0

3.0~5.0

5.0~12.0

Cross wire diameter (mm)

5.0~12.0

5.0~12.0

3.0~5.0

5.0~12.0

Max. welding capacity (mm)

12+12

12+12

5+5

12+12

Max. Working speed   (cws/min)

60~100

60~100

60~100

60~100

Rated electrical power (kw)

1300~1600

1300~1600

250

1300~1600

Product details

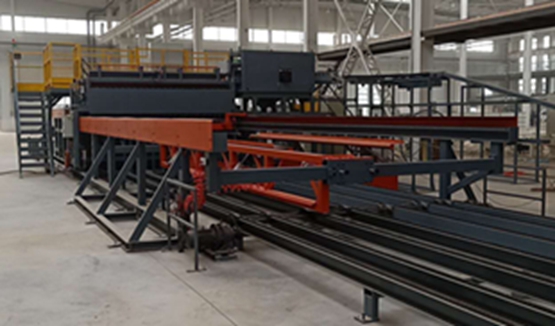

  • 轮播图3

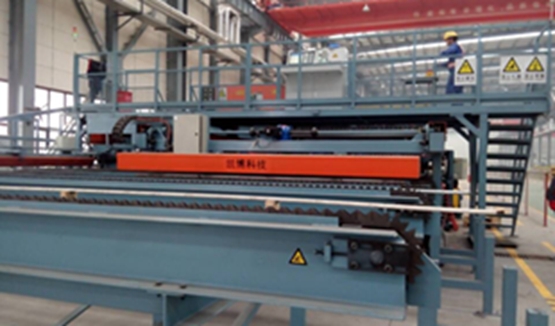

  • 2FCF97A624E401C788277D3708ED8927

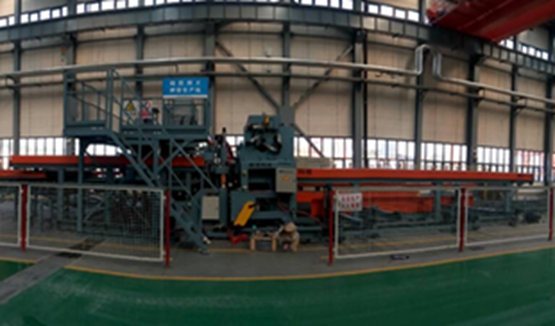

  • DAA6F499ADF62D48B20A8736BFEC2F71
  • 424520717030048619

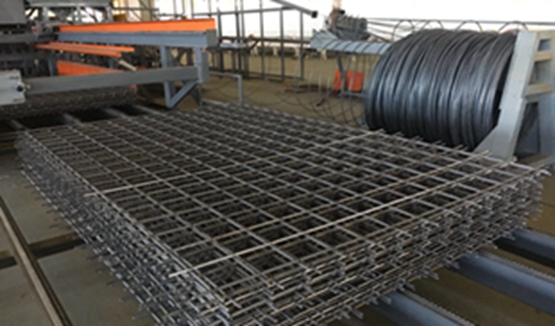

  • 602615855526157281

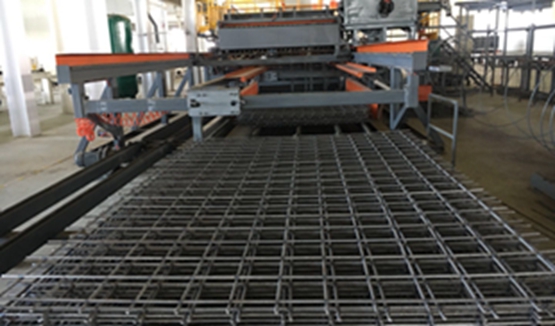

  • 轮播图4

application example

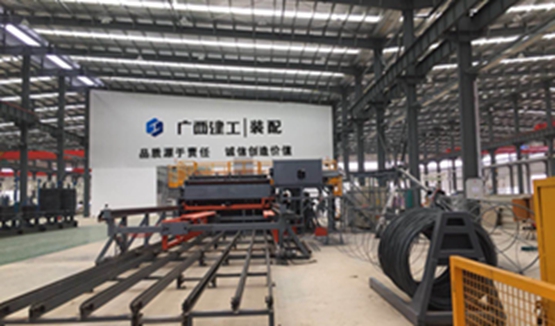

  • 轮播图2

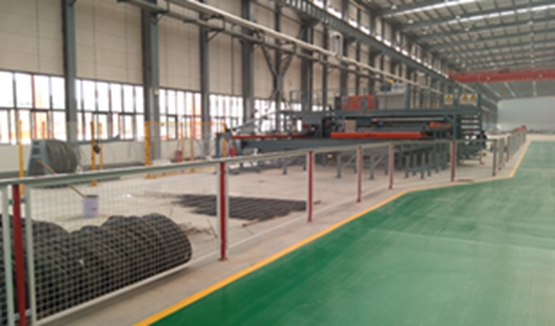

  • IMG_20150827_090150

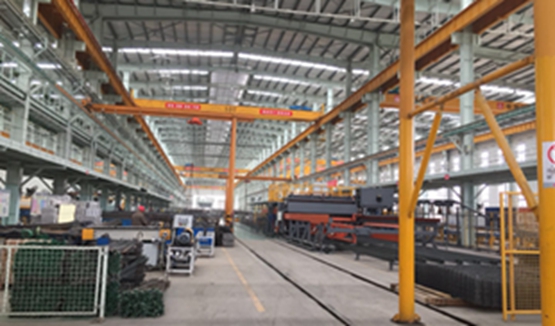

  • 303804885461797478

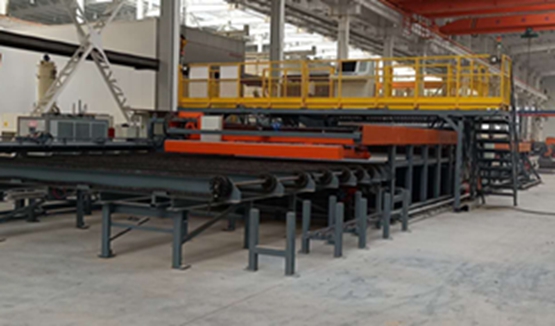

  • 424520717030048619

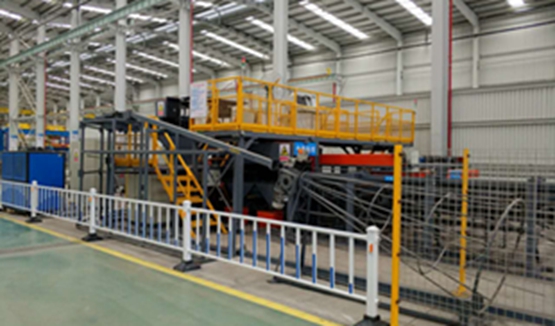

  • 微信图片_20170616144000

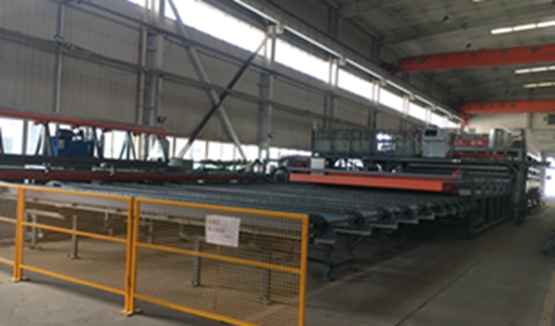

  • IMG_9140

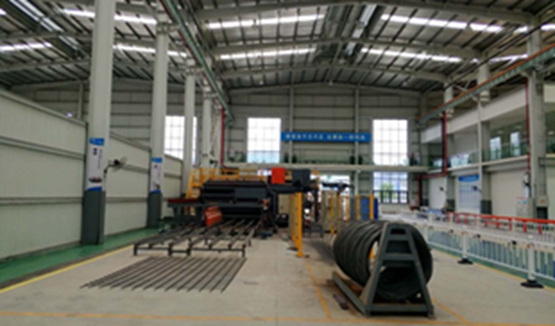

  • 微信图片_20170616143940

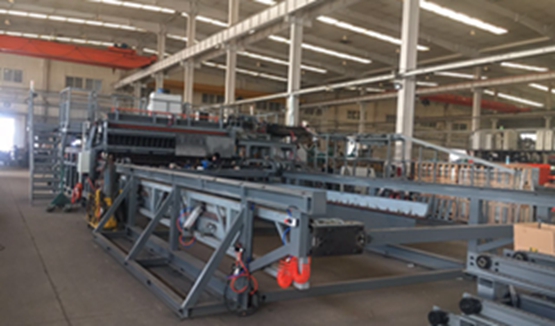

  • 微信图片_20170620121829

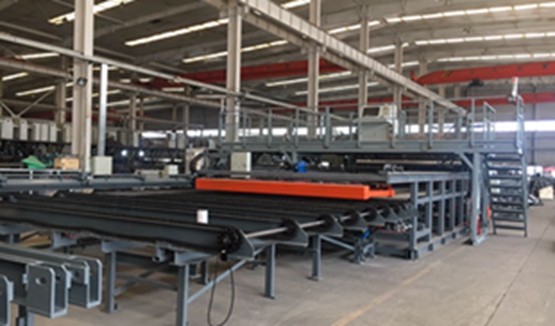

  • 微信图片_20170620122117

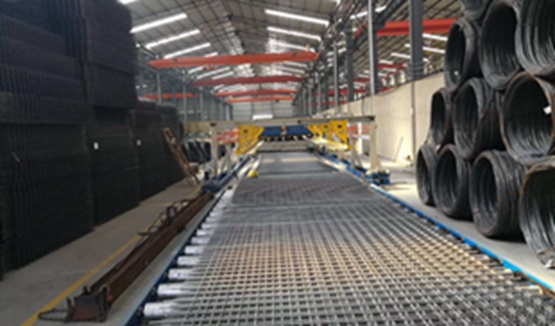

  • 微信图片_20171220110517

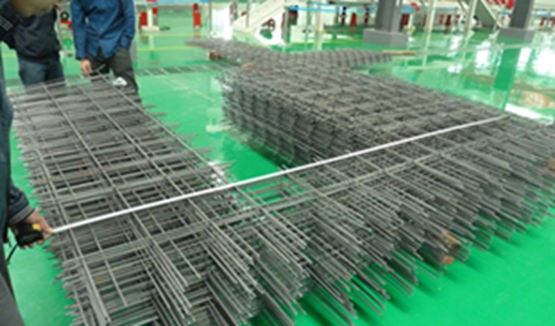

  • L1300199

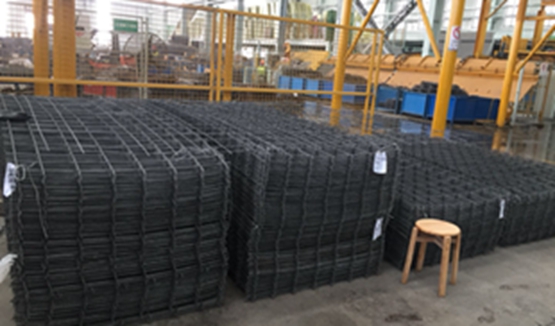

  • 637835696376022595
