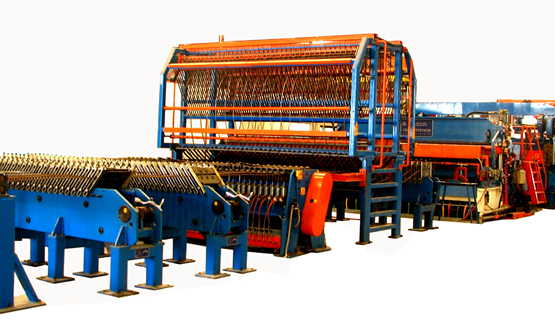

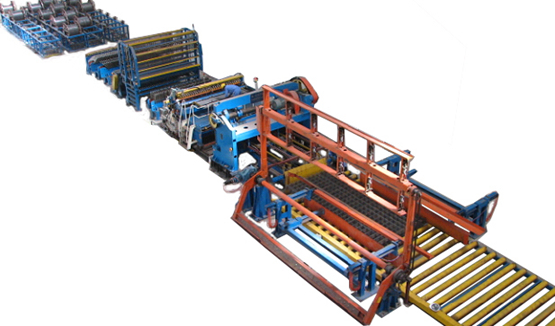

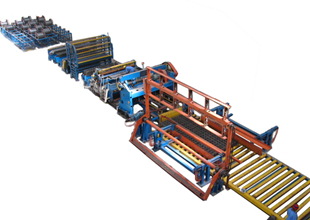

Automatic Steel Mesh Welding Line, Straight Bar + Coil Wire

Product Description

Model GWC-PA/PB

Mesh Width 1250/1800/2600/2800/3300/4000

Line Wire Feed Coil Wire

Cross Wire Feed Pre-cut Straight Bar

Max. Welding Capacity 12+12mm

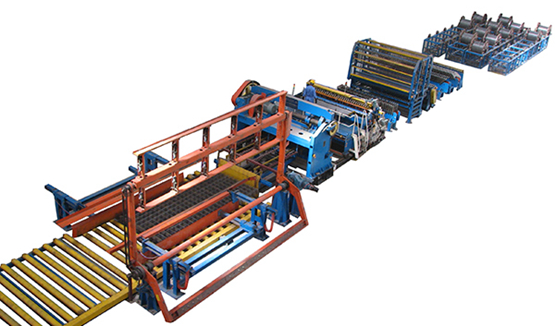

Automatic Steel Mesh Welding Line, Straight Bar + Coil Wire

Line wire is from spool and cross wire from pre-straightened and cut bar. This machine is modular in design and production to meet the different needs of customers. This machine has high productivity and mainly for mass production. This machine was designed for the large batch manufacture of standard as well as engineered mesh in sheet.

Welding materials:cold rolling ribbed steel wires and bars, hot rolled ribbed steel wires and bars, hot rolled ribbed steel wires and bars, plain steel bars, galvanized steel wire rope, and so on.

Auto. Steel Mesh Welding Machine

Technical advantages

1. High welding quality.

2. High accurate steel mesh size

3. High automatically working;

4. high production efficiency

5. Easy and convenient operation;

6. PCC control style

7. Wide range of welding

Technical Specification

Model

GWC-ZA

GWC-ZB

GWC-PA

GWC-PB

     Max. Working width (mm)

2600,2800,3300

2600,2800,3300

2100

2600,2800,3300

  Line wire space (mm)

100,150,200,250,300,350,400

100,150,200,250,300,350,400

50~200(无级)

100,150,200,250,300,350,400

Cross wire space (mm)

50~400

steplessly

50~400

steplessly

25~200

steplessly

50~400

steplessly

Line wire diameter (mm)

5.0~12.0

5.0~12.0

3.0~5.0

5.0~12.0

Cross wire diameter (mm)

5.0~12.0

5.0~12.0

3.0~5.0

5.0~12.0

Max. welding capacity (mm)

12+12

12+12

5+5

12+12

Max. Working speed   (cws/min)

60~100

60~100

60~100

60~100

Rated electrical power (kw)

1300~1600

1300~1600

250

1300~1600

Product details

  • 轮播图5

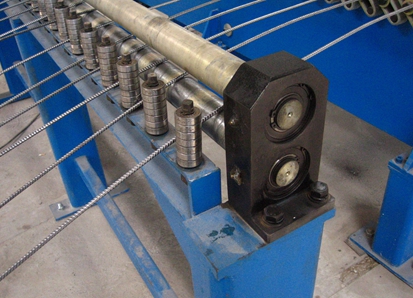

  • IMG_0018

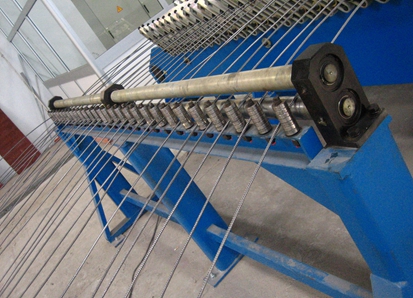

  • IMG_0019

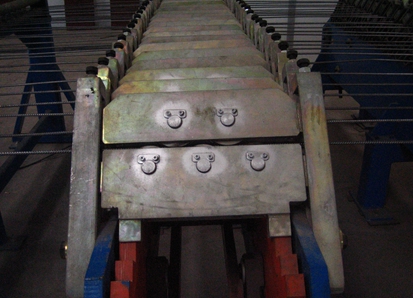

  • IMG_0023

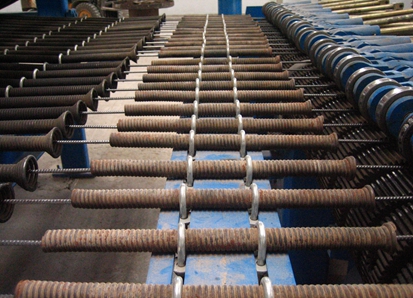

  • IMG_0044

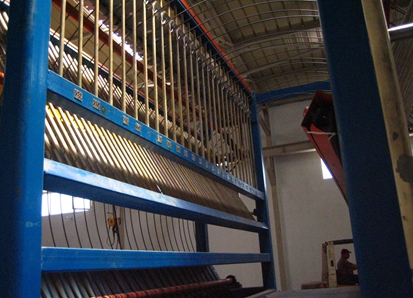

  • IMG_0046

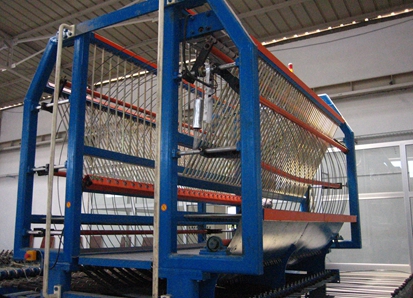

  • IMG_0068

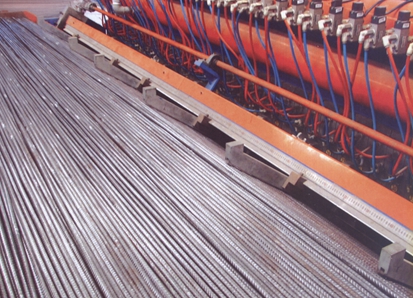

  • Cross Wire auto feeding system

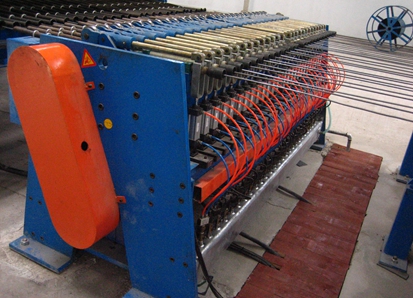

  • IMG_0031

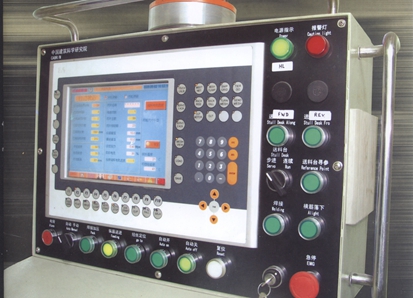

  • computer control system

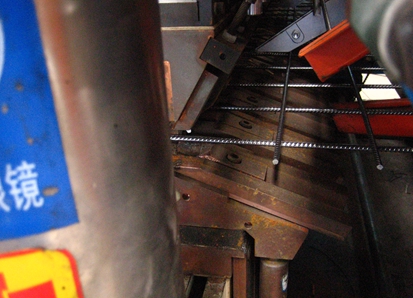

  • IMG_0126

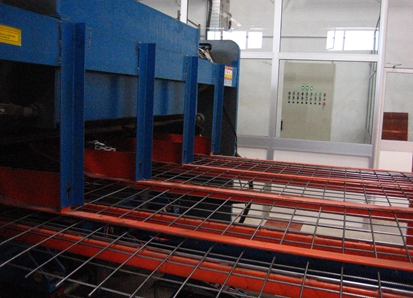

  • IMG_0152

application example

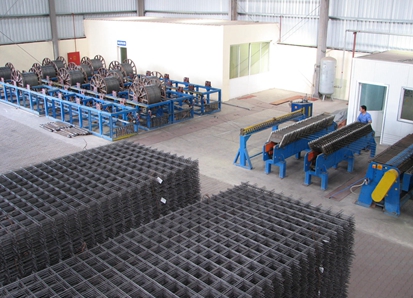

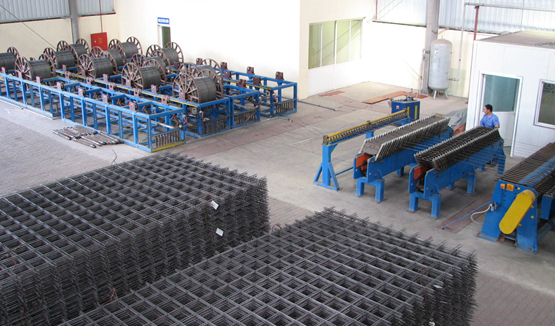

  • 轮播图5

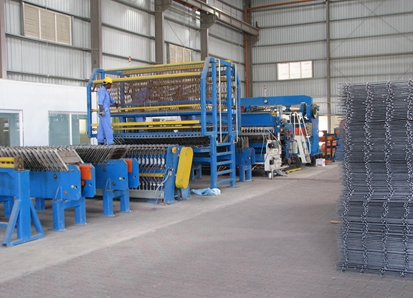

  • IMG_2613

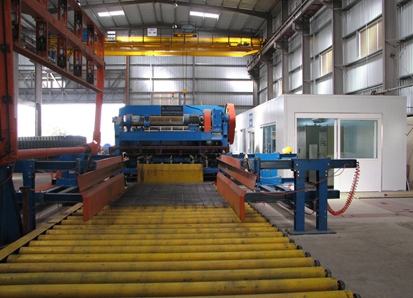

  • IMG_2488

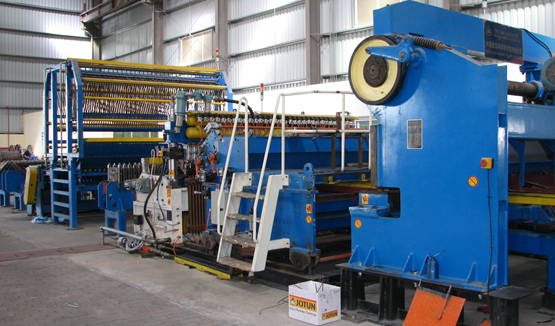

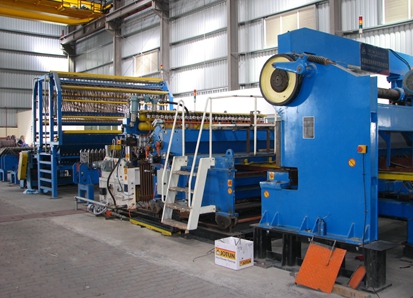

  • 轮播图4

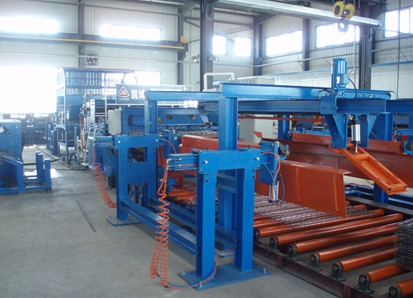

  • P1010139

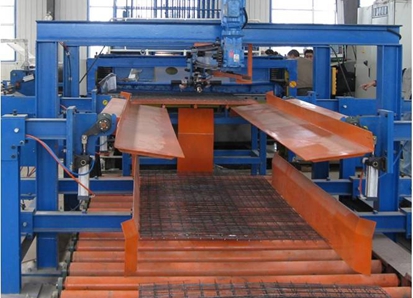

  • MESH STACKER

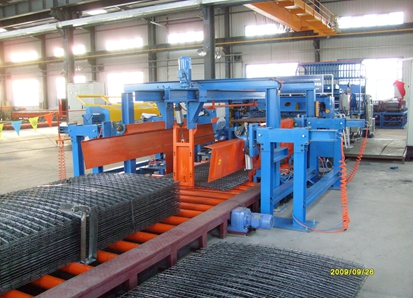

  • S7304696

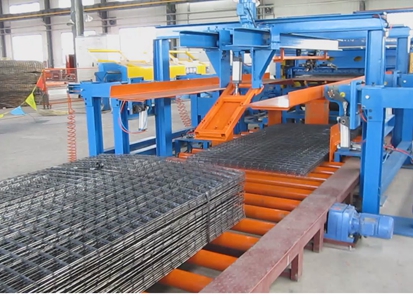

  • STEEL MESH STACKER

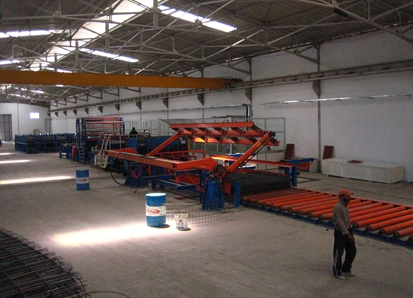

  • IMG_0194

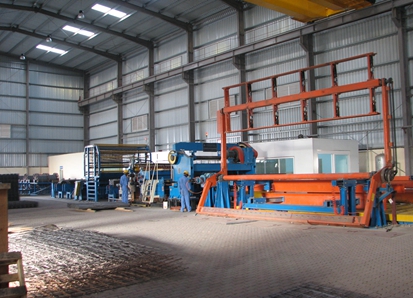

  • IMG_2783

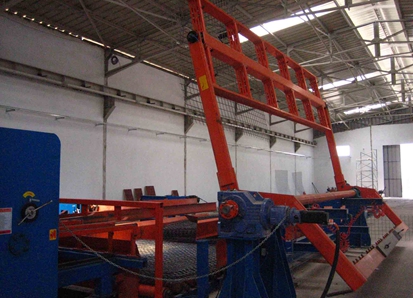

  • collecting

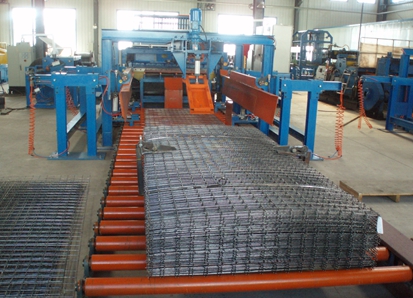

  • P1010134
